2-320573-2 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Lifecycle Status
ACTIVE (Last Updated: 1 week ago)
Factory Lead Time
29 Weeks
Contact Material
Copper
Contact Plating
Tin
Mount
Free Hanging
Mounting Type
Free Hanging (In-Line)
Material
Copper
Material - Insulation
Polyamide (PA), Nylon
Body Material
Copper
Packaging
Bulk
Series
PIDG
Published
2006
Feature
Insulation Restriction
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
Crimp
Color
Red, Red Stripe
Gender
Female
Voltage - Rated DC
300V
Depth
13.49mm
Contact Finish
Tin
Voltage - Rated AC
300V
Number of Contacts
1
Wire Gauge
20 AWG
ELV
Compliant
Plating
Tin
Body Plating
Tin
Wire/Cable Gauge
20 AWG
Sealable
No
Insulation Diameter
0.046 ~ 0.110 (1.17mm ~ 2.79mm)
Insulation
Insulated
Terminal Type
Circular
Wire/Cable Diameter
2.79 mm
Stud/Tab Size
3/8 Stud
Insulated Wire Support
Yes
Heavy Duty
No
Stud Diameter
9.525 mm
Government Qualified
Yes
Number of Holes
1
Length
30.94mm
Thickness
0.031 0.79mm
Length - Overall
1.280 32.51mm
Width - Outer Edges
0.531 13.49mm
Tongue Thickness
790μm
REACH SVHC
Unknown
RoHS Status
RoHS Compliant
Lead Free
Not Applicable
In-Stock:5444 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$1.240000
$1.24
10
$1.169811
$11.69811
100
$1.103596
$110.3596
500
$1.041128
$520.564
1000
$0.982196
$982.196
2-320573-2 Product Details

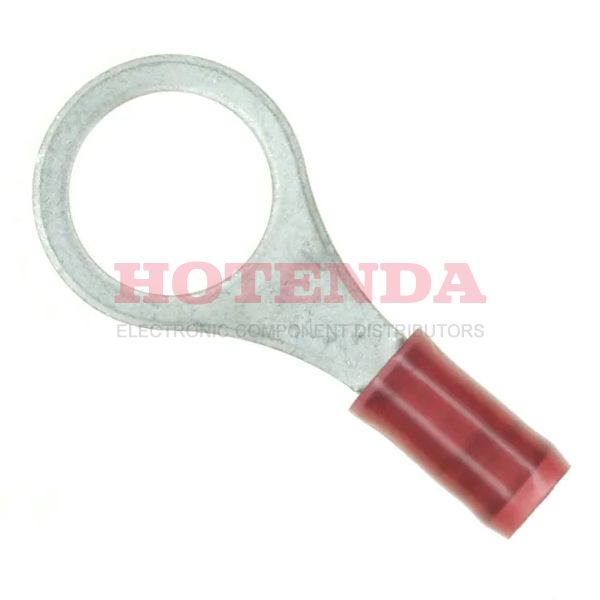

Description: The TE Connectivity / AMP Terminals 2-320573-2 Ring Connectors are designed for use in a variety of electrical applications. These connectors feature a 20 AWG #3/8 crimp design and are made from high-quality materials for reliable performance. The connectors are designed to provide a secure connection and are suitable for a wide range of applications.
Features: - 20 AWG #3/8 crimp design - Made from high-quality materials - Secure connection - Suitable for a wide range of applications
Applications: The TE Connectivity / AMP Terminals 2-320573-2 Ring Connectors are suitable for a variety of electrical applications, including automotive, industrial, and consumer electronics. They can be used to connect wires, cables, and other components in a secure and reliable manner.
