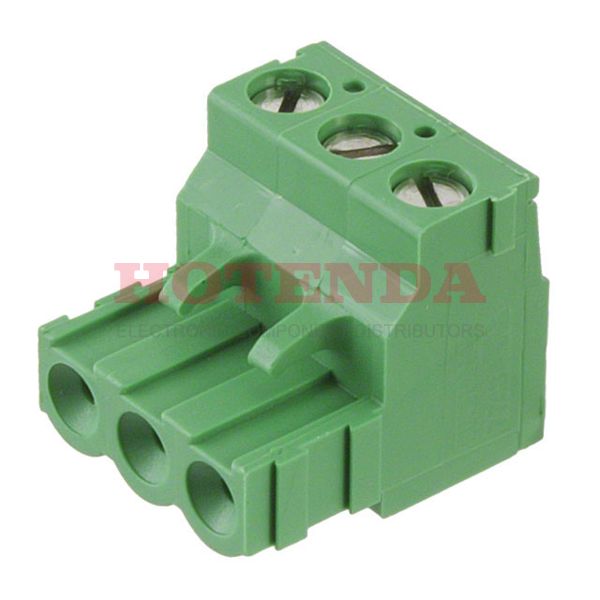

Name: 282807-3
Brand: TE Connectivity AMP Connectors
SKU: 282807-3
Price: 2.71000 USD
Availability: InStock

new-10%

282807-3

Manufacturer part number:282807-3

Manufacturer:TE Connectivity AMP Connectors

Description:282807-3 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:282807-3 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	13 Weeks
Lifecycle Status	ACTIVE (Last Updated: 4 days ago)
Contact Material	Phosphor Bronze
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Nylon
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~110°C
Packaging	Bulk
Published	2003
Series	Buchanan
Feature	Interlocking (Side), Retention Latches (Non-Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Plug
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	300V
Additional Feature	PA 66, 94V-0, LATCHED, POLARIZED
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	18.4mm
Insulation Height	0.610 15.49mm
Current Rating	15A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	3
Voltage	300V
ELV	Compliant
Max Voltage Rating (AC)	300V
Max Current Rating	15A
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	15 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Torque - Screw	0.79 Nm (7.0 Lb-In)
Number of Ways	3
Safety Approval	UL
Plug Wire Entry	180°
Wire Strip Length	6-7.5mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Max Supply Voltage (AC)	300V
Length	15.24mm
Width	18.4mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Not Applicable

282807-3 Product Details

282807-3 Overview

You get it in Plug packaging.Free Hanging (In-Line) is the mounting type of the device.Packaged in a Bulk case.This product is part of the Buchanan Series.In addition, there are other features, such as PA 66, 94V-0, LATCHED, POLARIZED, to mention just a few.A number of benefits can be derived from the Interlocking (Side), Retention Latches (Non-Wire Side) feature of this application.In this case, Cable, Free Hanging mounts the part.Device runs at -40°C~110°C Operating Temperature.There are a lot of advantages this part has in common with other Plug, Female Sockets parts.
