Name: 282809-7
Brand: TE Connectivity AMP Connectors
SKU: 282809-7
Price: 6.02000 USD
Availability: InStock

new-10%

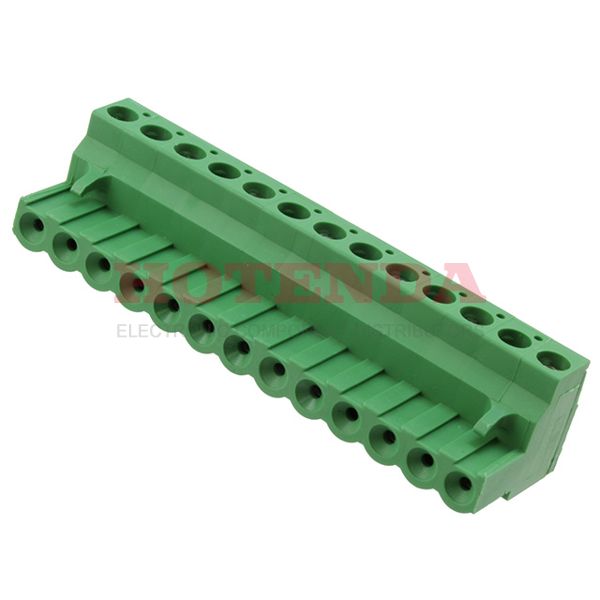

282809-7

Manufacturer part number:282809-7

Manufacturer:TE Connectivity AMP Connectors

Description:282809-7 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:282809-7 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	13 Weeks
Lifecycle Status	ACTIVE (Last Updated: 2 days ago)
Contact Material	Phosphor Bronze
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~110°C
Packaging	Bulk
Published	2007
Series	Buchanan
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Plug
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	600V
HTS Code	8536.69.40.40
Pitch	0.400 10.16mm
Orientation	Right Angle
Insulation Height	0.610 15.49mm
Current Rating	15A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	7
Voltage	600V
ELV	Compliant
Max Current Rating	15A
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Torque - Screw	0.79 Nm (7.0 Lb-In)
Number of Ways	7
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.05-3mm2
Wire Strip Length	6-7.5mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Not Applicable

282809-7 Product Details

282809-7 Overview

You'll get Plug packages.Free Hanging (In-Line) is the mounting type.A Bulk case is used for packaging.The product is part of the Buchanan Series.In many ways, Retention Latches (Non-Wire Side) makes it more powerful.Cable, Free Hanging represents the mounting point for the part.Operating temperature is -40°C~110°C.As with other Plug, Female Sockets products, this part has a lot of benefits.
