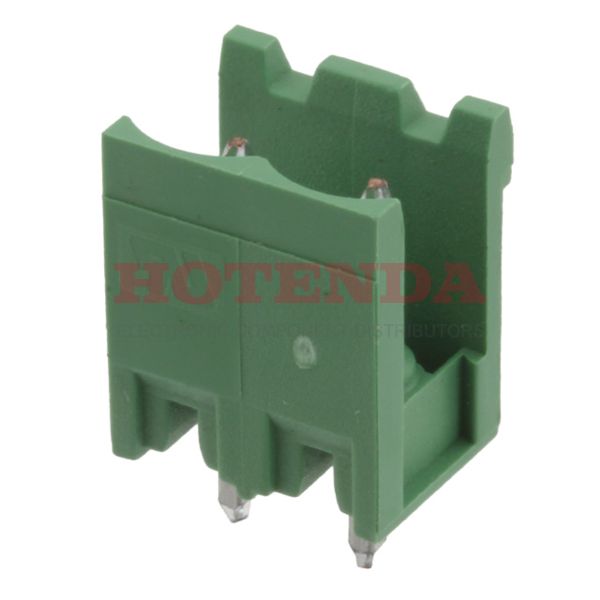

Name: 282821-2
Brand: TE Connectivity AMP Connectors
SKU: 282821-2
Availability: InStock

new-10%

282821-2

Manufacturer part number:282821-2

Manufacturer:TE Connectivity AMP Connectors

Description:282821-2 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:282821-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	21 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~110°C
Packaging	Bulk
Published	2007
Series	Buchanan
JESD-609 Code	e3
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Header
Type	Header, Male Pins, Shrouded (2 Side)
Number of Positions	2
Color	Green
Number of Rows	1
Additional Feature	STANDARD: IEC 998
HTS Code	8536.69.40.40
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.197 5.00mm
Total Number of Contacts	2
Insulation Height	0.472 12.00mm
Current Rating	15A
Termination Style	Solder
Voltage - Rated AC	300V
UL Flammability Code	94V-0
Voltage	300V
Contact Tail Length	0.138 3.50mm
ELV	Compliant
Max Voltage Rating (AC)	300V
Max Current Rating	15A
Number of Levels	1
Current	15A
Contact Mating Finish	Tin
Header Orientation	Vertical
Number of Positions Per Level	2
Length - Tail	3.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

282821-2 Product Details

282821-2 Overview

This product is packaged in a Header box.The mounting type of the device is Through Hole.To package the product, a Bulk case is used.This product is in the Buchanan Series.Additionally, there are other features such as STANDARD: IEC 998.This feature makes it more powerful in a number of ways due to its Interlocking (Side) feature.Through Hole is mounting the part.It runs at -40°C~110°C Operating Temperature.Other Header, Male Pins, Shrouded (2 Side) products benefit from this part as well.
