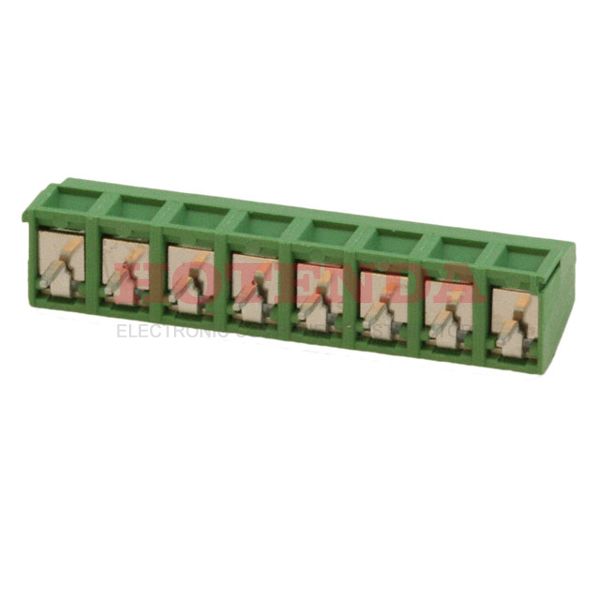

Name: 282837-8
Brand: TE Connectivity AMP Connectors
SKU: 282837-8
Price: 3.94000 USD
Availability: InStock

new-10%

282837-8

Manufacturer part number:282837-8

Manufacturer:TE Connectivity AMP Connectors

Description:0.200 5.08mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 16-28 AWG Buchanan

Case Package:SOT-23

Datasheet:282837-8 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 2 days ago)
Factory Lead Time	21 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Brass - Nickel Plated
Screw Material - Plating	Brass - Nickel Plated
Packaging	Bulk
Series	Buchanan
Published	2005
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	8
Color	Green
Number of Rows	1
Voltage - Rated	250V
Pitch	0.200 5.08mm
Orientation	Straight
Current Rating	13.5A
Number of Contacts	8
Housing Color	Green
Wire Gauge	16-28 AWG
Voltage	300V
ELV	Compliant
Number of Circuits	8
Max Voltage Rating (AC)	250V
Max Current Rating	13.5A
Plating	Brass
Number of Levels	1
Current	13.5A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	30 AWG
Wire/Cable Gauge	30 AWG
Torque - Screw	0.68 Nm (6 Lb-In)
Positions Per Level	8
Thread Size	M3
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Number of Positions Per Level	8
Length - Tail	3.5mm
REACH SVHC	Unknown
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

282837-8 Product Details

282837-8 Overview

The packaging contains Receptacle.There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number Buchanan belongs to the Buchanan Series.In many ways, it is more powerful due to its Interlocking (Side) feature.There is a Through Hole mount on the part.Circuits number 8 comprise the part.
