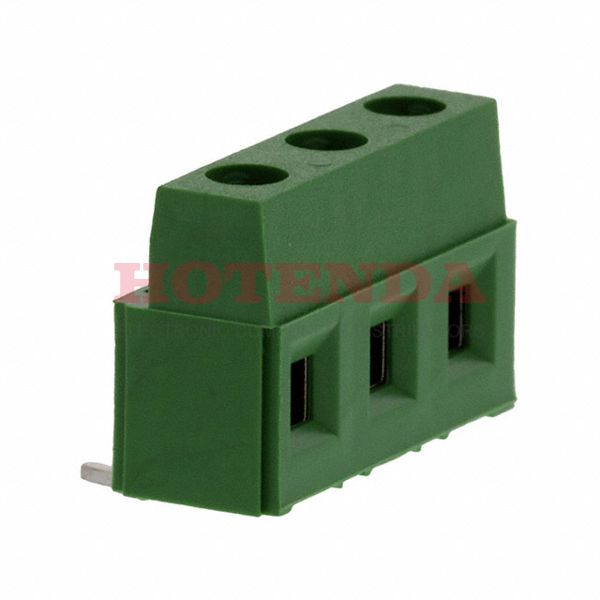

Name: 282854-3
Brand: TE Connectivity AMP Connectors
SKU: 282854-3
Price: 2.20000 USD
Availability: InStock

new-10%

282854-3

Manufacturer part number:282854-3

Manufacturer:TE Connectivity AMP Connectors

Description:0.295 7.50mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Vertical with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan

Case Package:SOT-23

Datasheet:282854-3 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 2 days ago)
Factory Lead Time	12 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Brass - Nickel Plated
Screw Material - Plating	Brass - Nickel Plated
Packaging	Bulk
Series	Buchanan
Published	2007
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Color	Green
Number of Rows	1
Voltage - Rated	300V
Additional Feature	94V-0, PA66
Pitch	0.295 7.50mm
Orientation	Right Angle
Number of Contacts	3
Wire Gauge	12-30 AWG
ELV	Compliant
Max Voltage Rating (AC)	450V
Max Current Rating	17.5A
Number of Levels	1
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	30 AWG
Number of Decks	1
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.79 Nm (7.0 Lb-In)
Number of Ways	3
Safety Approval	UL
Mating Orientation	Vertical with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Wire Cross Section	2.5 mm2
Length - Tail	3.6mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

282854-3 Product Details

282854-3 Overview

The product is packaged in Receptacle.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Buchanan Series.To name a few, there is also 94V-0, PA66.There are a number of advantages to its Interlocking (Side) feature.Part Through Hole is mounted to the part.
