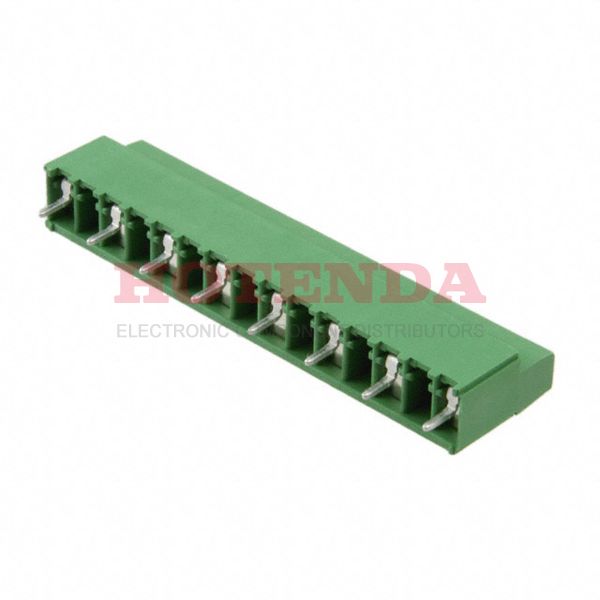

Name: 282858-8
Brand: TE Connectivity AMP Connectors
SKU: 282858-8
Price: 8.28000 USD
Availability: InStock

new

282858-8

Manufacturer part number:282858-8

Manufacturer:TE Connectivity AMP Connectors

Description:0.394 10.00mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan

Case Package:SOT-23

Datasheet:282858-8 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 4 days ago)
Factory Lead Time	12 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Brass - Nickel Plated
Screw Material - Plating	Brass - Nickel Plated
Packaging	Bulk
Series	Buchanan
Published	2007
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw, Solder
ECCN Code	EAR99
Connector Type	Receptacle
Color	Green
Number of Rows	1
Voltage - Rated	600V
Additional Feature	PA 6-6, UL 94V-0
Pitch	0.394 10.00mm
Orientation	Straight
Current Rating	24A
Number of Contacts	8
Wire Gauge	12-30 AWG
ELV	Compliant
Max Current Rating	24A
Number of Levels	1
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.79 Nm (7.0 Lb-In)
Number of Ways	8
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Wire Cross Section	4 mm2
Length - Tail	3.5mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

282858-8 Product Details

282858-8 Overview

Packaging is in the form of Receptacle.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Buchanan Series.Other features include PA 6-6, UL 94V-0, to name just a few.Several benefits come from the Interlocking (Side) feature.There is a mounting hole at Through Hole.
