Name: 282868-2
Brand: TE Connectivity AMP Connectors
SKU: 282868-2
Price: 3.22000 USD
Availability: InStock

new-10%

282868-2

Manufacturer part number:282868-2

Manufacturer:TE Connectivity AMP Connectors

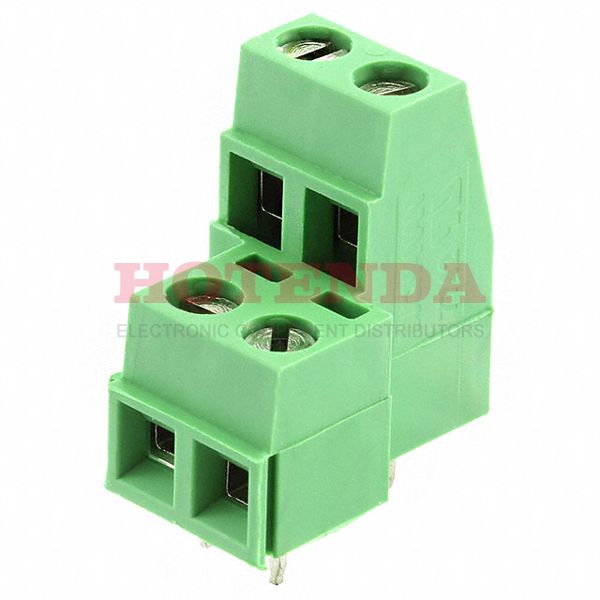

Description:0.197 5.00mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 2 Levels 12-30 AWG Buchanan

Case Package:SOT-23

Datasheet:282868-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 2 days ago)
Factory Lead Time	13 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Brass - Nickel Plated
Screw Material - Plating	Brass - Nickel Plated
Operating Temperature	-40°C~105°C
Packaging	Bulk
Series	Buchanan
Published	2007
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	2
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Color	Green
Number of Rows	2
Voltage - Rated	300V
Pitch	0.197 5.00mm
Orientation	Straight
Depth	18.5mm
Current Rating	13.5A
Number of Contacts	2
Housing Color	Green
Wire Gauge	12-30 AWG
Voltage	300V
ELV	Compliant
Number of Circuits	2
Max Voltage Rating (AC)	300V
Max Current Rating	13.5A
Plating	Brass
Number of Levels	2
Current	13.5A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Torque - Screw	0.68 Nm (6 Lb-In)
Positions Per Level	2
Thread Size	M3
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Number of Positions Per Level	2
Max Supply Voltage (AC)	300V
Length	12.5mm
Length - Tail	3.5mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

282868-2 Product Details

282868-2 Overview

Receptacle packaging is included.This device has a mounting type of Through Hole.We package the product with a Bulk case.The product is part of the Buchanan Series.If it is to be used, it should be kept at a temperature below 105°C.There must be a minimum temperature of -40°C for this device to operate.This feature makes it more powerful in a number of ways due to its Interlocking (Side) feature.You've got Through Hole mounted on the part.It's made up of 2 circuits.This device runs at -40°C~105°C operating temperature.
