Name: 282897-2
Brand: TE Connectivity AMP Connectors
SKU: 282897-2
Price: 10.88000 USD
Availability: InStock

new

282897-2

Manufacturer part number:282897-2

Manufacturer:TE Connectivity AMP Connectors

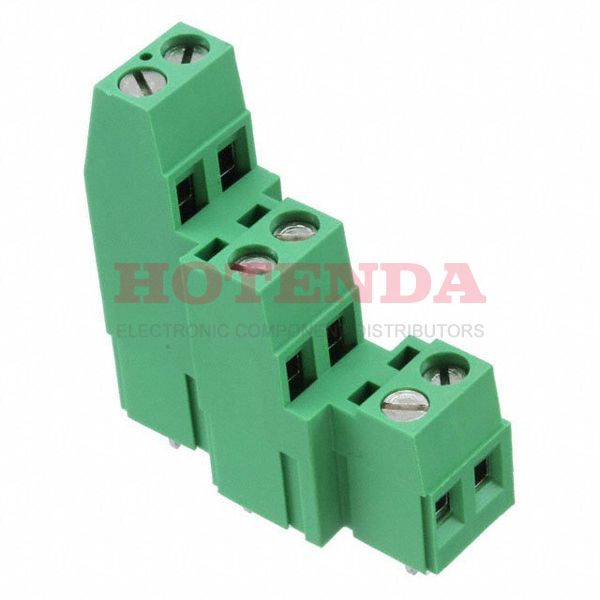

Description:0.200 5.08mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 3 Levels 12-30 AWG Buchanan

Case Package:SOT-23

Datasheet:282897-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 5 days ago)
Factory Lead Time	13 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Brass - Nickel Plated
Screw Material - Plating	Brass - Nickel Plated
Operating Temperature	-40°C~105°C
Packaging	Bulk
Series	Buchanan
Published	2007
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Connector Type	Receptacle
Number of Positions	2
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Color	Green
Number of Rows	3
Voltage - Rated	300V
Pitch	0.200 5.08mm
Orientation	Straight
Current Rating	17.5A
Number of Contacts	6
Housing Color	Green
Wire Gauge	12-30 AWG
Voltage	300V
ELV	Compliant
Number of Circuits	2
Max Current Rating	17.5A
Plating	Brass
Number of Levels	3
Current	17.5A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Torque - Screw	0.79 Nm (7.0 Lb-In)
Positions Per Level	2
Thread Size	M3
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Number of Positions Per Level	2
Length - Tail	3.81mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

282897-2 Product Details

282897-2 Overview

Currently, it is packaged in Receptacle.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the Buchanan Series, it belongs to the range of products of that series.A temperature below 105°C is best for using it.The device must run at -40°C degrees.A number of features make the Interlocking (Side) feature more powerful.Through Hole represents the mounting point for the part.Contains 2 circuits.-40°C~105°C Operating Temperature is the default operating temperature for the device.
