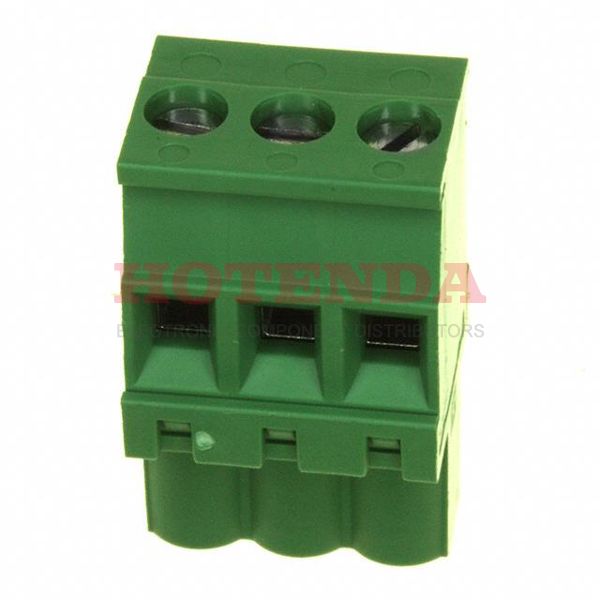

Name: 284040-3
Brand: TE Connectivity AMP Connectors
SKU: 284040-3
Price: 3.83000 USD
Availability: InStock

new-10%

284040-3

Manufacturer part number:284040-3

Manufacturer:TE Connectivity AMP Connectors

Description:284040-3 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:284040-3 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	19 Weeks
Lifecycle Status	ACTIVE (Last Updated: 2 days ago)
Contact Material	Phosphor Bronze
Mount	Free Hanging, Through Hole
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~110°C
Packaging	Bulk
Published	2007
Series	Buchanan
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Plug
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	300V
Additional Feature	PA66, 94V-0
Pitch	0.197 5.00mm
Orientation	Straight
Depth	12.5mm
Insulation Height	0.984 25.00mm
Current Rating	15A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	3
Voltage	300V
ELV	Compliant
Max Voltage Rating (AC)	300V
Max Current Rating	15A
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Torque - Screw	0.79 Nm (7.0 Lb-In)
Number of Ways	13
Safety Approval	UL
Plug Wire Entry	270°
Wire Gauge or Range - mm²	0.05-3mm2
Wire Strip Length	6-7.5mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Max Supply Voltage (AC)	300V
Length	15mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Not Applicable

284040-3 Product Details

284040-3 Overview

The product comes in a package of Plug.There is a Free Hanging (In-Line) mounting type for the device.A Bulk case is used for packaging.The product belongs to the Buchanan Series.Additionally, there are other features, such as PA66, 94V-0.This feature makes it more powerful in a number of ways due to its Retention Latches (Non-Wire Side) feature.Free Hanging, Through Hole is used to mount the part.Device runs in -40°C~110°C operating temperature.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.
