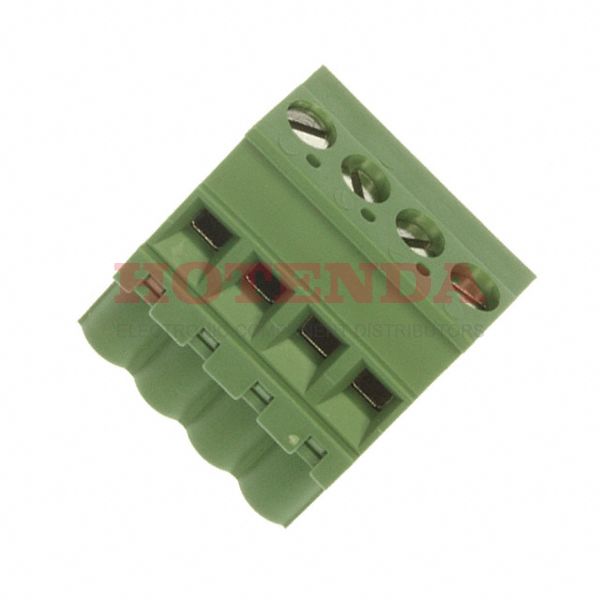

Name: 284041-4
Brand: TE Connectivity AMP Connectors
SKU: 284041-4
Price: 5.20000 USD
Availability: InStock

new-10%

284041-4

Manufacturer part number:284041-4

Manufacturer:TE Connectivity AMP Connectors

Description:284041-4 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:284041-4 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	19 Weeks
Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Contact Material	Phosphor Bronze
Mount	Free Hanging, Through Hole
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~110°C
Packaging	Bulk
Published	2002
Series	Buchanan
Feature	Retention Latches (Non-Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Plug
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	300V
Pitch	0.200 5.08mm
Orientation	Straight
Depth	12.5mm
Insulation Height	0.984 25.00mm
Current Rating	15A
Termination Style	Screw - Rising Cage Clamp
Voltage - Rated AC	300V
Number of Contacts	4
Voltage	300V
ELV	Compliant
Max Voltage Rating (AC)	300V
Max Current Rating	15A
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Torque - Screw	0.79 Nm (7.0 Lb-In)
Number of Ways	4
Safety Approval	UL
Plug Wire Entry	270°
Wire Gauge or Range - mm²	0.05-3mm2
Wire Strip Length	6-7.5mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Max Supply Voltage (AC)	300V
Length	20.32mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Not Applicable

284041-4 Product Details

284041-4 Overview

This product is packaged in a Plug box.Mounting type is Free Hanging (In-Line).To package the product, we use a Bulk case.The product belongs to the Buchanan Series.Its Retention Latches (Non-Wire Side) feature renders it more powerful in many ways.Free Hanging, Through Hole mounts the part.As a result, the device runs at -40°C~110°C Operating Temperature.Other Plug, Female Sockets products benefit from this part as well.
