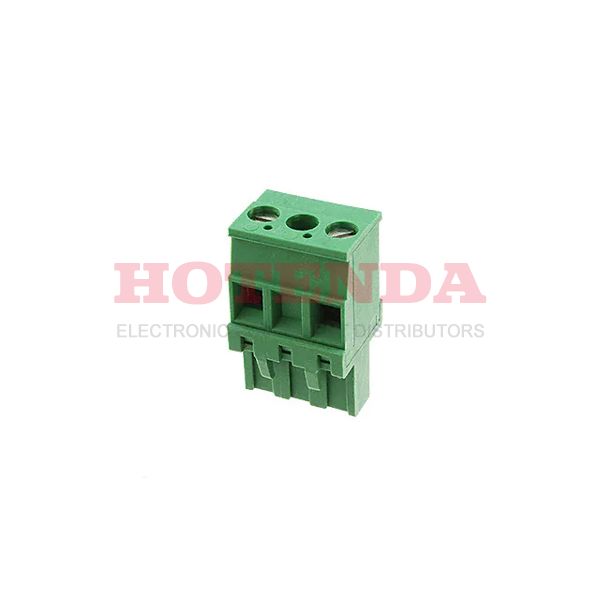

Name: 284051-2
Brand: TE Connectivity AMP Connectors
SKU: 284051-2
Price: 1.54000 USD
Availability: InStock

new-10%

284051-2

Manufacturer part number:284051-2

Manufacturer:TE Connectivity AMP Connectors

Description:284051-2 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:284051-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	19 Weeks
Lifecycle Status	ACTIVE (Last Updated: 4 months ago)
Contact Material	Phosphor Bronze
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~110°C
Packaging	Bulk
Published	2007
Series	Buchanan
Feature	Retention Latches (Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Connector Type	Plug
Type	Plug, Female Sockets
Number of Positions	2
Color	Green
Number of Rows	1
Voltage - Rated	600V
Pitch	0.400 10.16mm
Orientation	Straight
Insulation Height	0.984 25.00mm
Current Rating	15A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	2
Housing Color	Green
Voltage	300V
ELV	Compliant
Number of Circuits	2
Max Current Rating	15A
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	30 AWG
Contact Mating Finish	Tin
Voltage - UL	300V
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Torque - Screw	0.79 Nm (7.0 Lb-In)
Positions Per Level	2
Plug Wire Entry	90°
Thread Size	M3
Wire Gauge or Range - mm²	0.05-3mm2
Wire Strip Length	6-7.5mm
Number of Positions Per Level	2
Screw Size	M3
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

284051-2 Product Details

284051-2 Overview

A Plug packaging is included.Mounting type is Free Hanging (In-Line).Packaging the product involves using a Bulk case.The product belongs to the Buchanan Series.A number of features make it more powerful because of its Retention Latches (Wire Side) feature.The part is mounted by Cable, Free Hanging.This part has 2 circuits.-40°C~110°C Operating Temperature is used by the device.The benefts of this part are similar to those of other Plug, Female Sockets products.
