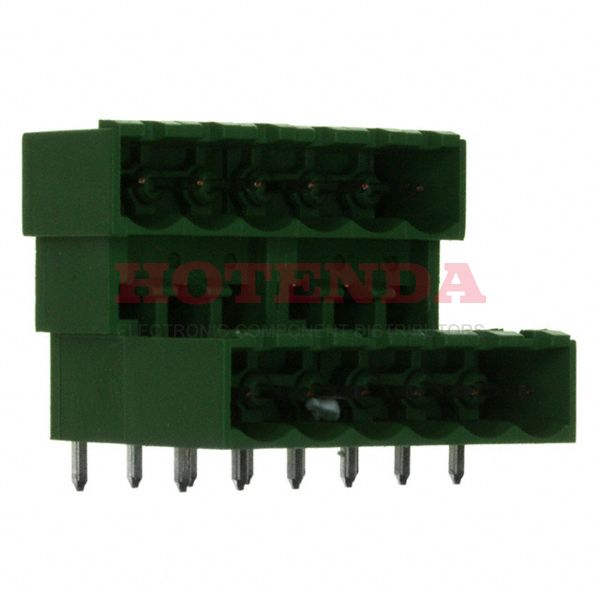

Name: 284061-6
Brand: TE Connectivity AMP Connectors
SKU: 284061-6
Price: 6.97000 USD
Availability: InStock

new-10%

284061-6

Manufacturer part number:284061-6

Manufacturer:TE Connectivity AMP Connectors

Description:284061-6 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:284061-6 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Lifecycle Status	ACTIVE (Last Updated: 4 months ago)
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~110°C
Packaging	Bulk
Published	2007
Series	Buchanan
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Header
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	12
Color	Green
Number of Rows	2
Voltage - Rated	300V
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	22.1mm
Insulation Height	0.902 22.90mm
Current Rating	15A
Termination Style	Solder
Voltage - Rated AC	300V
Shrouding	Yes
Voltage	300V
Contact Tail Length	0.138 3.50mm
ELV	Compliant
Max Voltage Rating (AC)	300V
Max Current Rating	15A
Number of Levels	2
Current	12A
Contact Mating Finish	Tin
Number of Decks	2
Positions Per Level	6
Number of Ways	32
Safety Approval	UL
Header Orientation	90°, Right Angle
Number of Positions Per Level	6
Fastening Method	CONNECTOR
Length	35.06mm
Length - Tail	3.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

284061-6 Product Details

284061-6 Overview

This product is packaged in a Header cartonA Through Hole mounting type is specified for the device.To package the product, we use a Bulk case.It belongs to the Buchanan Series of products.Its Interlocking (Side) feature makes it more powerful in a number of ways.The part is mounted by Through Hole.It operates at an operating temperature of -40°C~110°C.It is a part that shares many benefits with other products from the Header, Male Pins, Shrouded (4 Side) line.
