Name: 284094-7
Brand: TE Connectivity AMP Connectors
SKU: 284094-7
Price: 4.78000 USD
Availability: InStock

new-10%

284094-7

Manufacturer part number:284094-7

Manufacturer:TE Connectivity AMP Connectors

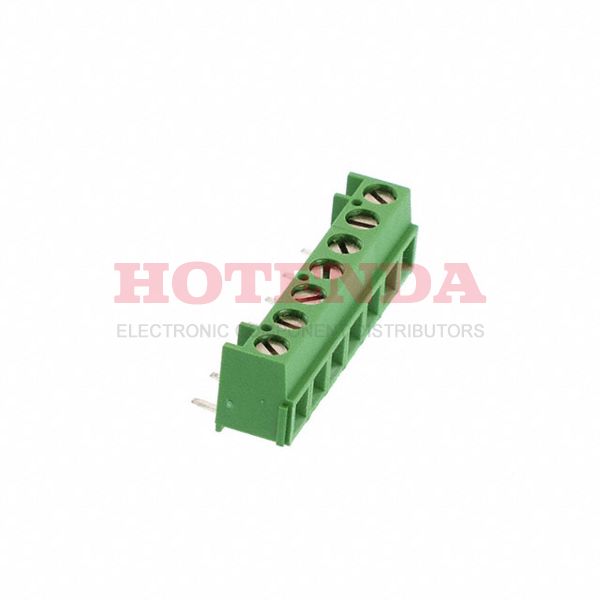

Description:0.200 5.08mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Vertical with Board Screw - Rising Cage Clamp 1 Levels 16-30 AWG Buchanan

Case Package:SOT-23

Datasheet:284094-7 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 1 week ago)
Factory Lead Time	12 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	Polyamide
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Brass - Nickel Plated
Screw Material - Plating	Brass - Nickel Plated
Packaging	Bulk
Series	Buchanan
Published	2007
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Receptacle
Color	Green
Number of Rows	1
Voltage - Rated	300V
Additional Feature	94V-0, PA66
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Right Angle
Wire Gauge	16-30 AWG
ELV	Compliant
Max Current Rating	13.5A
Number of Levels	1
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	16 AWG
Number of Decks	1
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.68 Nm (6 Lb-In)
Number of Ways	17
Safety Approval	UL
Mating Orientation	Vertical with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Number of Positions Per Level	7
Width	8.2mm
Length - Tail	3.5mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

284094-7 Product Details

284094-7 Overview

The packaging is Receptacle.Mounting type is Through Hole.To package the product, we use a Bulk case.This product is from the Buchanan Series.Then there's 94V-0, PA66, for example.A number of advantages are provided by its Interlocking (Side) feature.Mounted by Through Hole.
