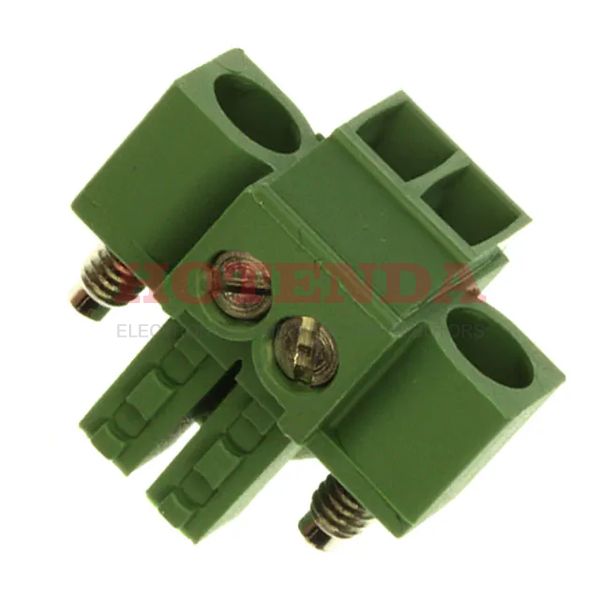

Name: 284510-2
Brand: TE Connectivity AMP Connectors
SKU: 284510-2
Price: 4.81000 USD
Availability: InStock

new-10%

284510-2

Manufacturer part number:284510-2

Manufacturer:TE Connectivity AMP Connectors

Description:284510-2 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:284510-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Lifecycle Status	ACTIVE (Last Updated: 2 days ago)
Contact Material	Phosphor Bronze
Mount	Free Hanging, Through Hole
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~110°C
Packaging	Bulk
Published	2007
Series	Buchanan
Feature	Mating Flange
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Plug
Type	Plug, Female Sockets
Number of Positions	2
Color	Green
Number of Rows	1
Voltage - Rated	300V
Additional Feature	POLARIZATION AVAILABLE
HTS Code	8536.69.40.40
Pitch	0.138 3.50mm
Orientation	Right Angle
Insulation Height	0.437 11.10mm
Current Rating	11A
Termination Style	Screw - Rising Cage Clamp
Voltage - Rated AC	300V
Number of Contacts	2
Voltage	300V
ELV	Compliant
Max Voltage Rating (AC)	300V
Max Current Rating	11A
Number of Levels	1
Current	11A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	14-30 AWG
Torque - Screw	0.31 Nm (2.7 Lb-In)
Number of Ways	2
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.05-2mm2
Wire Strip Length	5-6mm
Screw Size	M2
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Not Applicable

284510-2 Product Details

284510-2 Overview

A Plug package is included with it.Mounting type is Free Hanging (In-Line).It is necessary to use a Bulk case for packaging the product.The product is a member of the Buchanan Series.Additionally, there are other features, such as POLARIZATION AVAILABLE.A number of features make it more powerful because of its Mating Flange feature.By Free Hanging, Through Hole, the part is mounted.-40°C~110°C Operating Temperature is used by the device.Other Plug, Female Sockets products benefit from this part as well.
