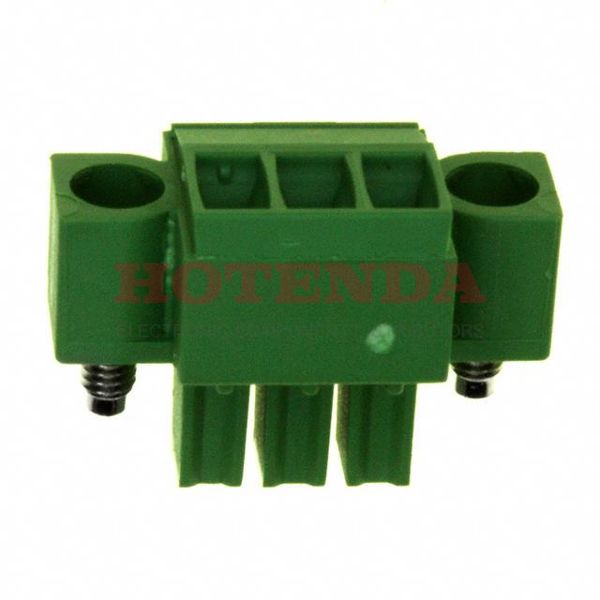

Name: 284510-3
Brand: TE Connectivity AMP Connectors
SKU: 284510-3
Price: 7.21000 USD
Availability: InStock

new-10%

284510-3

Manufacturer part number:284510-3

Manufacturer:TE Connectivity AMP Connectors

Description:284510-3 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:284510-3 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	15 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~110°C
Packaging	Bulk
Published	2002
Series	Buchanan
Feature	Mating Flange
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Plug, Female Sockets
Number of Positions	3
Color	Green
Number of Rows	1
Additional Feature	POLARIZATION AVAILABLE
Pitch	0.138 3.50mm
Insulation Height	0.437 11.10mm
Reach Compliance Code	not_compliant
Termination Style	Screw - Rising Cage Clamp
Number of Levels	1
Contact Mating Finish	Tin
Voltage - UL	300V
Number of Decks	1
Wire Gauge or Range - AWG	14-30 AWG
Current - UL	11A
Torque - Screw	0.31 Nm (2.7 Lb-In)
Number of Ways	3
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.05-2mm2
Wire Strip Length	5-6mm
Screw Size	M2
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

284510-3 Product Details

284510-3 Overview

This device has a Free Hanging (In-Line) mounting type.We package the product with a Bulk case.A product of the Buchanan Series, it belongs to the range of products of that series.In addition, there are other features such as POLARIZATION AVAILABLE, to mention only a few.With its Mating Flange feature, it is more powerful in many ways.Operating temperature is -40°C~110°C.In addition to its benefits, this part also shares many with the other products in the Plug, Female Sockets series.
