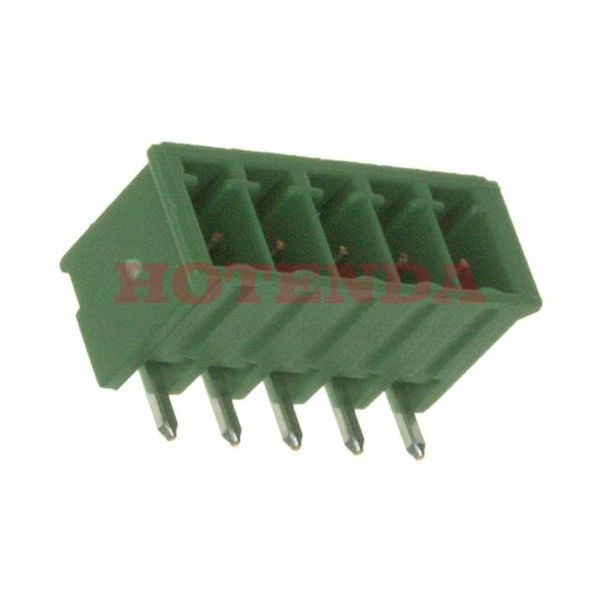

Name: 284512-5
Brand: TE Connectivity AMP Connectors
SKU: 284512-5
Price: 1.98000 USD
Availability: InStock

new-10%

284512-5

Manufacturer part number:284512-5

Manufacturer:TE Connectivity AMP Connectors

Description:284512-5 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:284512-5 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	17 Weeks
Lifecycle Status	ACTIVE (Last Updated: 2 days ago)
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole
Material	Polyamide
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~110°C
Packaging	Bulk
Published	2007
Series	Buchanan
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Header
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	5
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	300V
Additional Feature	POLARIZED, PA66, 94V-0
Pitch	0.138 3.50mm
Orientation	Right Angle
Depth	9.2mm
Insulation Height	0.287 7.30mm
Current Rating	11A
Termination Style	Solder
Voltage - Rated AC	300V
Voltage	300V
Contact Tail Length	0.134 3.40mm
ELV	Compliant
Max Voltage Rating (AC)	300V
Max Current Rating	11A
Number of Levels	1
Current	11A
Number of Poles	5
Contact Mating Finish	Tin
Number of Decks	1
Number of Ways	5
Safety Approval	UL
Header Orientation	90°, Right Angle
Fastening Method	CONNECTOR
Length	19.5mm
Width	9.2mm
Length - Tail	3.4mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

284512-5 Product Details

284512-5 Overview

You'll get Header packages.There is a mounting type of Through Hole for this device.Packaging for the product is carried out via a Bulk case.Buchanan Series product.To name a few, there is also POLARIZED, PA66, 94V-0.It is mounted by Through Hole.-40°C~110°C Operating Temperature is the default.Compared to other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits to offer.
