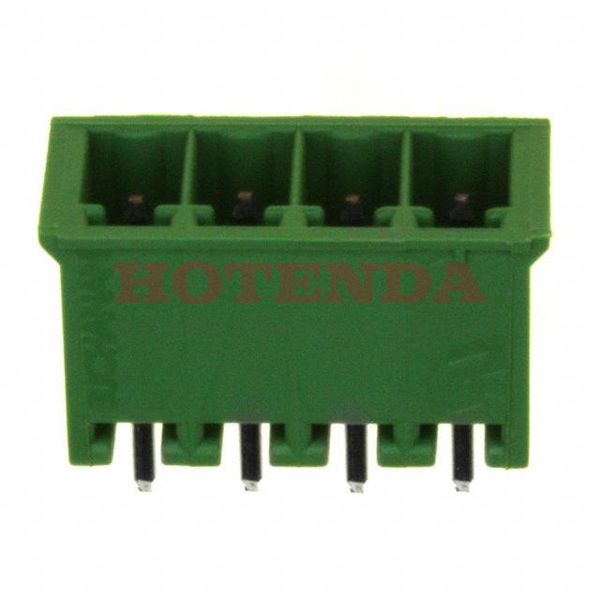

Name: 284514-4
Brand: TE Connectivity AMP Connectors
SKU: 284514-4
Price: 1.81000 USD
Availability: InStock

new-10%

284514-4

Manufacturer part number:284514-4

Manufacturer:TE Connectivity AMP Connectors

Description:284514-4 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:284514-4 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	21 Weeks
Lifecycle Status	ACTIVE (Last Updated: 4 months ago)
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~110°C
Packaging	Bulk
Published	2004
Series	Buchanan
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Header
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	4
Color	Green
Number of Rows	1
Voltage - Rated	300V
Pitch	0.138 3.50mm
Orientation	Straight
Depth	7.2mm
Insulation Height	0.362 9.20mm
Current Rating	11A
Termination Style	Solder
Voltage - Rated AC	300V
Shrouding	Yes
Voltage	300V
ELV	Compliant
Max Voltage Rating (AC)	300V
Max Current Rating	11A
Number of Levels	1
Current	11A
Number of Poles	4
Contact Mating Finish	Tin
Number of Decks	1
Number of Ways	14
Safety Approval	UL
Header Orientation	Vertical
Fastening Method	CONNECTOR
Length	16mm
Length - Tail	3.4mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

284514-4 Product Details

284514-4 Overview

The product is packaged in Header.There is a mounting type of Through Hole for this device.We pack the product in a Bulk case.It's part of the Buchanan Series.There is a Through Hole mount on the part.This device operates at a temperature of -40°C~110°C.Other Header, Male Pins, Shrouded (4 Side) products benefit from this part as well.
