Name: 284516-8
Brand: TE Connectivity AMP Connectors
SKU: 284516-8
Price: 3.35000 USD
Availability: InStock

new-10%

284516-8

Manufacturer part number:284516-8

Manufacturer:TE Connectivity AMP Connectors

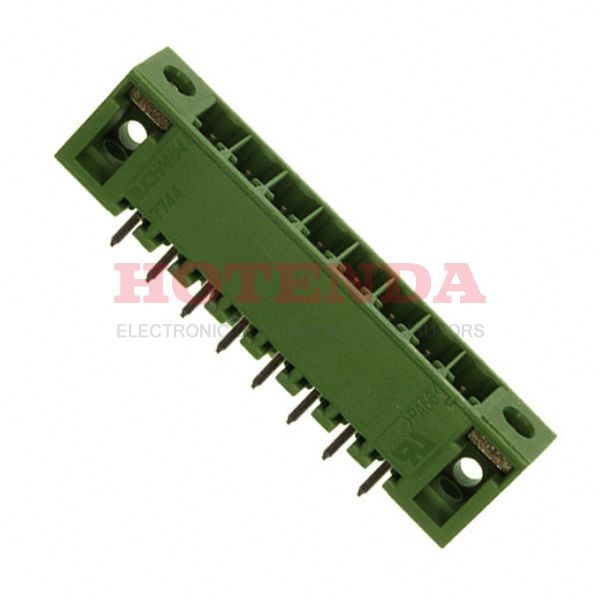

Description:Bulk 0.138 3.50mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Buchanan Polyamide (PA66), Nylon 6/6 Tin Phosphor Bronze

Case Package:SOT-23

Datasheet:284516-8 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 6 days ago)
Factory Lead Time	12 Weeks
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~110°C
Packaging	Bulk
Series	Buchanan
Published	2007
Feature	Mating Flange
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Header
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	8
Color	Green
Number of Rows	1
Voltage - Rated	300V
Additional Feature	94V-0, PA66, POLARIZED
Pitch	0.138 3.50mm
Orientation	Straight
Depth	7.2mm
Insulation Height	0.362 9.20mm
Current Rating	11A
Termination Style	Solder
Shrouding	Yes
Voltage	300V
Contact Tail Length	0.134 3.40mm
ELV	Compliant
Max Voltage Rating (AC)	300V
Max Current Rating	11A
Number of Levels	1
Current	11A
Number of Poles	8
Contact Mating Finish	Tin
Number of Decks	1
Number of Ways	18
Safety Approval	UL
Header Orientation	Vertical
Fastening Method	CONNECTOR
Length	24.5mm
Length - Tail	3.4mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

284516-8 Product Details

284516-8 Overview

Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the Buchanan Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as 94V-0, PA66, POLARIZED, to name a few.A number of features make the Mating Flange feature more powerful.Through Hole represents the mounting point for the part.-40°C~110°C Operating Temperature is the default operating temperature for the device.As with other Header, Male Pins, Shrouded (4 Side) products, this part also offers a wide range of benefits.
