Name: 292227-2
Brand: TE Connectivity AMP Connectors
SKU: 292227-2
Price: 0.89000 USD
Availability: InStock

new-10%

292227-2

Manufacturer part number:292227-2

Manufacturer:TE Connectivity AMP Connectors

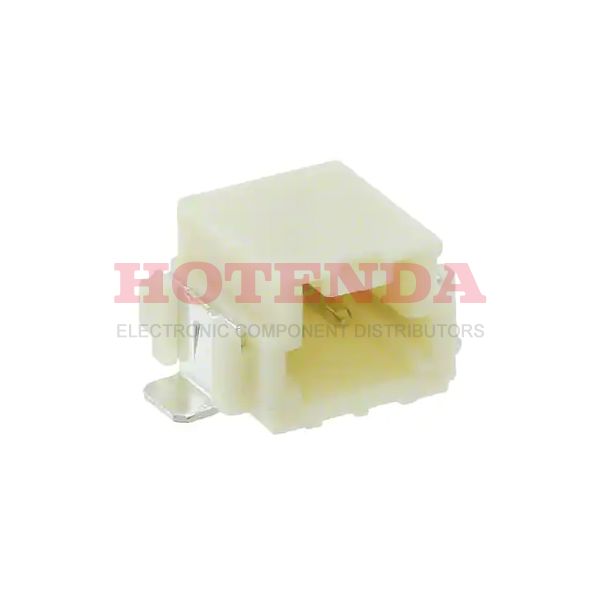

Description:Mini CT Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount, Right Angle Tin Polyamide (PA6T), Nylon 6T, Glass Filled 2-Position Board to Cable/Wire 0.193 4.90mm Height

Case Package:SOT-23

Datasheet:292227-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Factory Lead Time	25 Weeks
Contact Material	Brass
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Contact Shape	Square
Insulation Material	Polyamide (PA6T), Nylon 6T, Glass Filled
Housing Material	Nylon
Shape	Rectangular
PCB Mounting Orientation	Right Angle
PCB Mount Retention	With
Operating Temperature	-30°C~105°C
Packaging	Tape & Reel (TR)
Series	Mini CT
Published	2004
Feature	Board Guide, Solder Retention
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	2
Applications	General Purpose
Number of Rows	1
Voltage - Rated	50VAC
Fastening Type	Detent Lock
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Current Rating (Amps)	Varies by WireGAuge
Total Number of Contacts	2
Orientation	Right Angle
Depth	7.7mm
Insulation Height	0.193 4.90mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Current Rating	2A
Pitch - Mating	0.059 1.50mm
Insulation Color	Beige
Approval Agency	CSA
Shrouding	Shrouded - 4 Wall
Contact Length - Mating	0.094 2.40mm
Contact Gender	Male
UL Flammability Code	94V-0
Housing Color	Natural
Operating Supply Voltage	50V
Contact Resistance	30mOhm
Max Voltage Rating (AC)	50V
Wire/Cable Type	Discrete
Wire/Cable Gauge	24 AWG
Max Voltage Rating (DC)	50V
Sealable	No
Contact Current Rating	2A
Insulation Diameter	1.0414 mm
Mating Post Length	2.4mm
Height	7.7mm
Length	7.5mm
Width	4.8768mm
Contact Finish Thickness - Mating	1μm
PCB Thickness	787.4μm
Material Flammability Rating	UL94 V-0
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

292227-2 Product Details

292227-2 Overview

This product is packaged in a Header box.Surface Mount, Right Angle indicates that the device is mounted.An Tape & Reel (TR) case is utilized for packaging the product.The product is a part of the Mini CT Series.There is the possibility of using the device for General Purpose.In many ways, Board Guide, Solder Retention makes it more powerful.By Surface Mount, the part is mounted.The operating voltage of this memory is 50V.Operating temperature is set to -30°C~105°C.
