Name: 3-282836-2
Brand: TE Connectivity AMP Connectors
SKU: 3-282836-2
Price: 1.76000 USD
Availability: InStock

new-10%

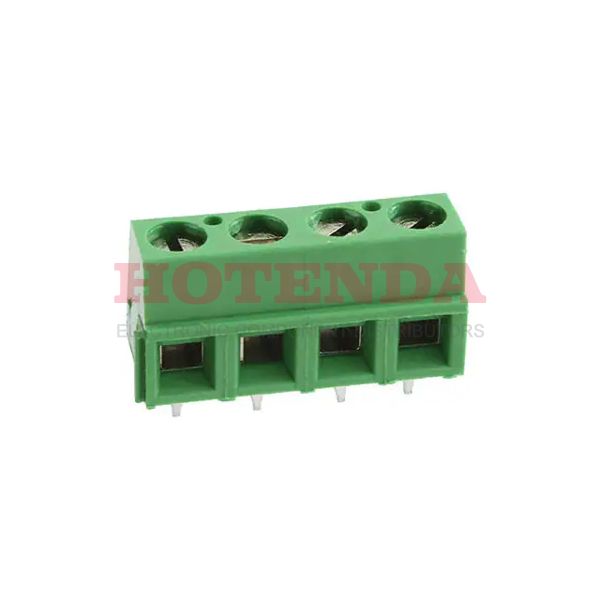

3-282836-2

Manufacturer part number:3-282836-2

Manufacturer:TE Connectivity AMP Connectors

Description:0.197 5.00mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 16-30 AWG Buchanan

Case Package:SOT-23

Datasheet:3-282836-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 2 days ago)
Factory Lead Time	7 Weeks
Contact Material	Brass
Contact Plating	Tin
Mounting Type	Through Hole
Number of Pins	4
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Brass - Nickel Plated
Screw Material - Plating	Brass - Nickel Plated
Packaging	Bulk
Series	Buchanan
Published	2011
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Positions	4
Color	Green
Number of Rows	1
Voltage - Rated	300V
Pitch	0.197 5.00mm
Number of Contacts	4
Housing Color	Green
Wire Gauge	16-30 AWG
Voltage	300V
ELV	Compliant
Max Current Rating	13.5A
Number of Levels	1
Current	13.5A
Torque - Screw	0.68 Nm (6 Lb-In)
Positions Per Level	4
Thread Size	M3
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

3-282836-2 Product Details

3-282836-2 Overview

Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Buchanan Series, it can be found in this category.It has 4 pins.With its Interlocking (Side) feature, it is more powerful in many ways.
