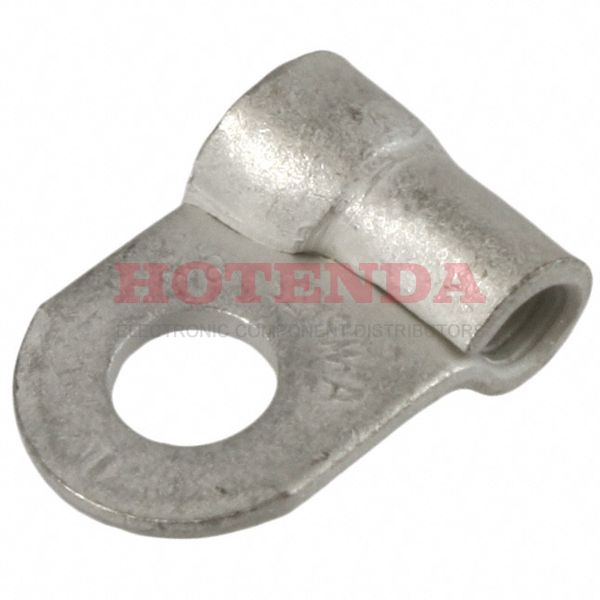

Name: 32065
Brand: TE Connectivity AMP Connectors
SKU: 32065
Price: 1.69000 USD
Availability: InStock

new-10%

32065

Manufacturer part number:32065

Manufacturer:TE Connectivity AMP Connectors

Description:32065 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:32065 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Factory Lead Time	8 Weeks
Contact Material	Copper
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line), Right Angle
Packaging	Bulk
Series	Budget
Published	1997
Feature	Serrated Termination
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Crimp, Flag
ECCN Code	EAR99
Gender	Female
HTS Code	8536.90.40.00
Orientation	Right Angle
Wire Gauge	16-22 AWG
ELV	Compliant
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	22 AWG
Terminal and Terminal Block Type	RING TERMINAL
Insulation Diameter	3.18 mm
Insulation	Non-Insulated
Terminal Type	Circular
Stud/Tab Size	6 Stud
Insulated Wire Support	Yes
Heavy Duty	No
Stud Diameter	3.5052 mm
Number of Holes	1
Stud Size	M3.5
Length	13.081mm
Thickness	0.031 0.79mm
Length - Overall	0.515 13.08mm
Width - Outer Edges	0.312 7.92mm
Material Thickness	787.4μm
Tongue Thickness	840μm
RoHS Status	RoHS Compliant
Lead Free	Not Applicable

32065 Product Details

Description:
TE Connectivity / AMP Terminals - Ring Connectors 32065 are a type of electrical connector designed for use in a variety of applications. They feature a circular design with a crimp connection for 16-22 AWG #6 wire. The connectors are made of a durable plastic material and are designed to provide a secure connection between two wires.

Features:
- Circular design with crimp connection for 16-22 AWG #6 wire
- Durable plastic material
- Secure connection between two wires
- Easy to install and use

Applications:
TE Connectivity / AMP Terminals - Ring Connectors 32065 are suitable for a variety of applications, including automotive, industrial, and consumer electronics. They can be used to connect two wires in a variety of applications, such as wiring harnesses, power supplies, and other electrical systems.
