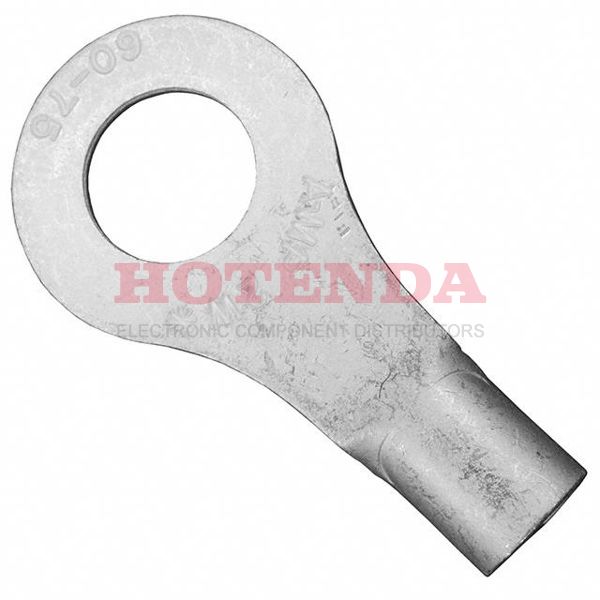

Name: 320754
Brand: TE Connectivity AMP Connectors
SKU: 320754
Price: 10.87000 USD
Availability: InStock

new

320754

Manufacturer part number:320754

Manufacturer:TE Connectivity AMP Connectors

Description:320754 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:320754 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 4 days ago)
Factory Lead Time	14 Weeks
Contact Material	Copper
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Package / Case	Metal
Packaging	Bulk
Series	Solistrand
Published	2004
Feature	Brazed Seam, Serrated Termination
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Crimp
ECCN Code	EAR99
HTS Code	8536.90.40.00
Orientation	Straight
Depth	32mm
Contact Finish	Tin
Wire Gauge	2 AWG
Wire/Cable Gauge	2 AWG
Terminal and Terminal Block Type	RING TERMINAL
Insulation	Non-Insulated
Thread Size	M16
Terminal Type	Circular
Wire Cross Section	42.4 mm2
Stud/Tab Size	5/8 Stud
Heavy Duty	No
Terminal Gender	FEMALE
Stud Diameter	16.66 mm
Number of Holes	1
Length	63.91mm
Plating Thickness	2.54μm
Thickness	0.070 1.78mm
Length - Overall	2.516 63.91mm
Diameter - Inside	9.4 mm
Width - Outer Edges	1.250 31.75mm
Material Thickness	1.8542mm
Tongue Thickness	1.85mm
RoHS Status	RoHS Compliant
Lead Free	Lead Free

320754 Product Details

Description:
The TE Connectivity / AMP Terminals 320754 Ring Connectors are designed for use in a variety of electrical applications. These connectors feature a 2 AWG size and a #5/8 crimp design. They are made from high-quality materials for reliable performance and long-lasting durability.

Features:
- 2 AWG size
- #5/8 crimp design
- High-quality materials
- Reliable performance
- Long-lasting durability

Applications:
The TE Connectivity / AMP Terminals 320754 Ring Connectors are suitable for use in a variety of electrical applications, such as automotive, marine, and industrial wiring. They can be used to connect wires, cables, and other components in a secure and reliable manner.
