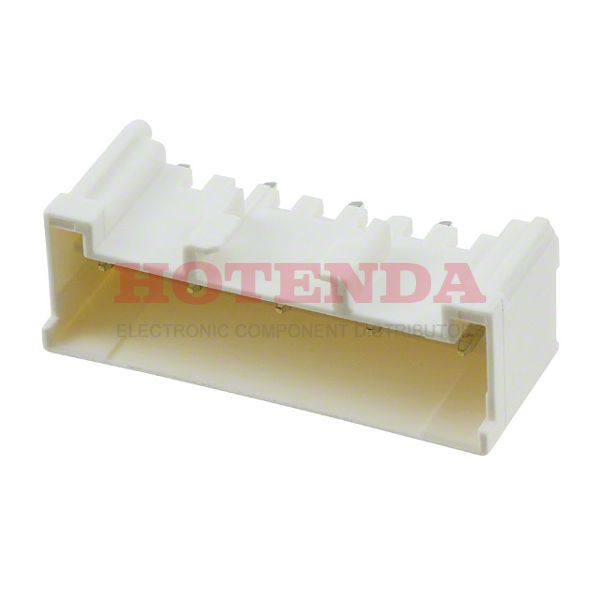

Name: 353352-1
Brand: TE Connectivity AMP Connectors
SKU: 353352-1
Price: 1.15000 USD
Availability: InStock

new-10%

353352-1

Manufacturer part number:353352-1

Manufacturer:TE Connectivity AMP Connectors

Description:353352-1 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:353352-1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	18 Weeks
Lifecycle Status	ACTIVE (Last Updated: 5 days ago)
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Housing Material	Nylon
PCB Mount Retention	With
Underplate Material	Copper
Operating Temperature	-30°C~105°C
Packaging	Bulk
Published	2005
Series	Signal Double Lock
Feature	Board Guide
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Kinked Pin, Solder
Connector Type	Header
Number of Positions	13
Applications	General Purpose
Number of Rows	1
Voltage - Rated	50V
Fastening Type	Latch Holder
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Current Rating (Amps)	3A
Orientation	Vertical
Insulation Height	0.386 9.80mm
Style	Board to Cable/Wire
Current Rating	5A
Pitch - Mating	0.098 2.50mm
Contact Length - Post	0.126 3.20mm
Shrouding	Shrouded - 4 Wall
Contact Length - Mating	0.185 4.70mm
UL Flammability Code	94V-0
Housing Color	Natural
Operating Supply Voltage	250V
Overall Contact Length	0.410 10.41mm
Contact Style	Straight
ELV	Compliant
Number of Poles	5
Sealable	No
Contact Current Rating	5A
Circuit Application	Signal
Mating Post Length	4.572mm
Height	9.8mm
Length	23.622mm
Width	8.2mm
Plating Thickness	1.2μm
Contact Finish Thickness - Mating	800 nm
Length - Tail	3.2mm
Stack Height (Mating)	13.7mm
PCB Thickness	1.6002mm
Material Flammability Rating	UL94 V-2
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

353352-1 Product Details

353352-1 Overview

The product comes in a package of Header.There is a Through Hole mounting type for the device.The product is packaged in a Bulk case.A member of the Signal Double Lock Series.A possible application of the device would be General Purpose.A number of features make the Board Guide feature more powerful.Part Through Hole is mounted to the part.A voltage of 250V is required to operate this memory.Operating temperature is -30°C~105°C.
