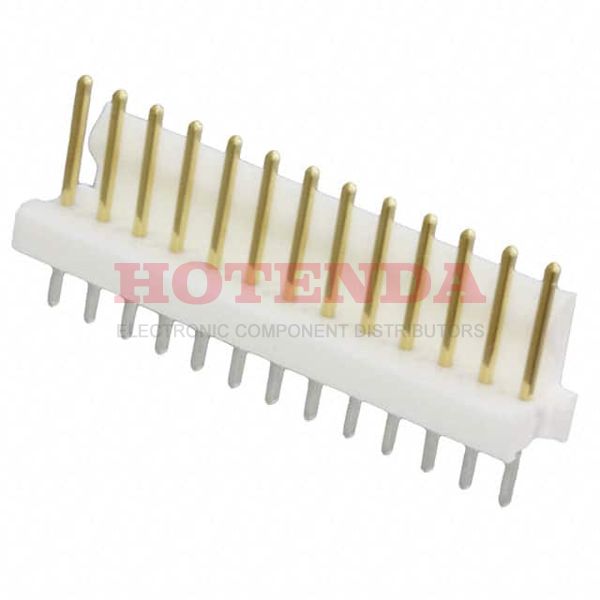

Name: 4-641126-3
Brand: TE Connectivity AMP Connectors
SKU: 4-641126-3
Price: 3.52000 USD
Availability: InStock

new-10%

4-641126-3

Manufacturer part number:4-641126-3

Manufacturer:TE Connectivity AMP Connectors

Description:4-641126-3 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:4-641126-3 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	19 Weeks
Lifecycle Status	ACTIVE (Last Updated: 5 months ago)
Contact Material	Copper Alloy
Contact Plating	Tin, Gold
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Thermoplastic
Housing Material	Polyester
PCB Mounting Orientation	Vertical
PCB Mount Retention	Without
Underplate Material	Nickel
PCB Mount Alignment	Without
Operating Temperature	-55°C~105°C
Packaging	Bulk
Published	2008
Series	MTA-100
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	13
Max Operating Temperature	221°C
Min Operating Temperature	-67°C
Color	Natural
Applications	General Purpose
Number of Rows	1
Voltage - Rated	250VAC
Fastening Type	Friction Lock
Contact Finish - Mating	Gold
Contact Type	Male Pin
Current Rating (Amps)	Varies by WireGAuge
Pitch	2.54mm
Orientation	Vertical
Depth	5.72mm
Insulation Height	0.305 7.75mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Current Rating	5A
Pitch - Mating	0.100 2.54mm
Insulation Color	Natural
Voltage - Rated AC	250V
Approval Agency	CSA
Contact Length - Post	0.140 3.56mm
Shrouding	Shrouded - 1 Wall
Number of Contacts	13
Contact Finish - Post	Tin
Contact Length - Mating	0.295 7.49mm
Contact Gender	Male
Housing Color	Natural
Lead Length	3.56mm
Operating Supply Voltage	250V
Overall Contact Length	0.535 13.59mm
Contact Style	Straight
Contact Resistance	6mOhm
ELV	Compliant
Max Voltage Rating (AC)	250V
Plating	Gold
Sealable	No
Contact Current Rating	5A
Circuit Application	Signal
Mating Retention	With
Mating Post Length	7.49mm
Height	7.87mm
Length	35.56mm
Plating Thickness	1.27μm
Contact Finish Thickness - Mating	15.0μin 0.38μm
Contact Finish Thickness - Post	150.0μin 3.81μm
Length - Tail	3.56mm
PCB Thickness	1.6002mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

4-641126-3 Product Details

4-641126-3 Overview

This product is packaged in a Header cartonThrough Hole is the mounting type for the device.It is necessary to use a Bulk case for packaging the product.The product belongs to the MTA-100 Series.You should use it when it's below 221°C.Temperature must be -67°C to operate this device.You can use it for General Purpose.Through Hole represents the mounting point for the part.In this memory, the operating supply voltage is 250V.This device runs at -55°C~105°C operating temperature.
