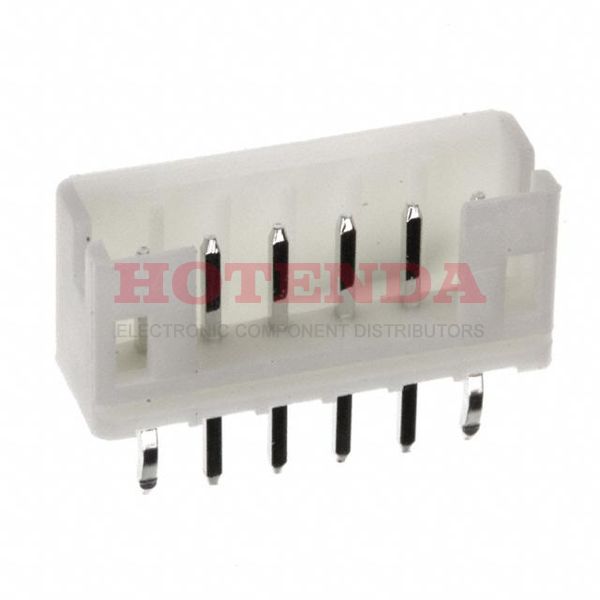

Name: 440054-6
Brand: TE Connectivity AMP Connectors
SKU: 440054-6
Price: 0.47000 USD
Availability: InStock

new-10%

440054-6

Manufacturer part number:440054-6

Manufacturer:TE Connectivity AMP Connectors

Description:440054-6 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:440054-6 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	13 Weeks
Lifecycle Status	ACTIVE (Last Updated: 4 days ago)
Contact Material	Brass
Contact Plating	Brass, Tin
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polyamide (PA66), Nylon 6/6
Housing Material	Nylon
PCB Mount Retention	With
Operating Temperature	-25°C~85°C
Packaging	Bulk
Published	2006
Series	High Performance Interconnect (HPI)
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Press-Fit, Solder
Connector Type	Header
Number of Positions	6
Applications	Automotive, General Purpose, Industrial, Medical
Number of Rows	1
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Orientation	Vertical
Terminal Pitch	2mm
Depth	4.7mm
Insulation Height	0.238 6.05mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Current Rating	3A
Pitch - Mating	0.079 2.00mm
Insulation Color	Natural
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Contact Length - Post	0.134 3.40mm
Shrouding	Shrouded - 4 Wall
Number Of PCB Rows	1
Contact Length - Mating	0.132 3.35mm
PCB Contact Pattern	RECTANGULAR
Contact Gender	Male
UL Flammability Code	94V-0
Lead Length	3.4036mm
Operating Supply Voltage	250V
Rated Current (Signal)	3A
Overall Contact Length	0.335 8.51mm
Contact Style	Straight
Contact Resistance	20mOhm
Mating Contact Pitch	0.079 inch
Max Voltage Rating (AC)	250V
Polarization Key	POLARIZED HOUSING
Wire/Cable Type	Discrete
Durability	30 Cycles
Wire/Cable Gauge	24 AWG
Sealable	No
Contact Current Rating	3A
Circuit Application	Signal
Mating Retention	Without
Insulation Diameter	900 μm
Mating Post Length	3.3274mm
Height	6.35mm
Length	13.9954mm
Width	4.7mm
Contact Finish Thickness - Mating	80.0μin 2.03μm
Contact Finish Thickness - Post	80.0μin 2.03μm
Length - Tail	3.4mm
PCB Thickness	1.6mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

440054-6 Product Details

440054-6 Overview

You get it in Header packaging.The device's mounting type is Through Hole.Packaging for the product is carried out via a Bulk case.It's from the High Performance Interconnect (HPI) Series.A possible application is Automotive, General Purpose, Industrial, Medical.By Through Hole it's mounted.According to the datasheet, this memory operates at an operating voltage of 250V.Devices operate at -25°C~85°C operating temperatures.
