Name: 5-146253-4
Brand: TE Connectivity AMP Connectors
SKU: 5-146253-4
Price: 0.87000 USD
Availability: InStock

new-10%

5-146253-4

Manufacturer part number:5-146253-4

Manufacturer:TE Connectivity AMP Connectors

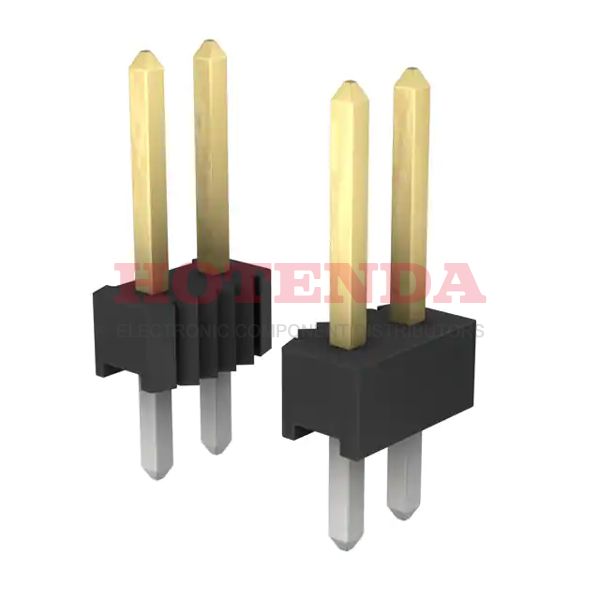

Description:AMPMODU Mod II Series 2-Row Header, Breakaway Solder Copper Alloy Bulk Through Hole Gold Liquid Crystal Polymer (LCP) 8-Position Board to Board or Cable 0.090 2.29mm Height

Case Package:SOT-23

Datasheet:5-146253-4 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 5 months ago)
Factory Lead Time	17 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Housing Material	Thermoplastic
Operating Temperature	-65°C~105°C
Packaging	Bulk
Series	AMPMODU Mod II
Published	2009
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header, Breakaway
Number of Positions	8
Number of Rows	2
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Orientation	Vertical
Depth	4.88mm
Insulation Height	0.090 2.29mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Current Rating	3A
Pitch - Mating	0.100 2.54mm
Approval Agency	CSA
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.125 3.18mm
Shrouding	Unshrouded
Contact Finish - Post	Tin
Contact Length - Mating	0.318 8.08mm
Contact Gender	Male
Housing Color	Black
Lead Length	3.175mm
Operating Supply Voltage	30V
Overall Contact Length	0.533 13.55mm
Insulation Resistance	5GOhm
ELV	Compliant
Contact Current Rating	3A
Mating Post Length	8.08mm
High Temperature Housing	Yes
High Speed Serial Data Connector	No
Length	9.75mm
Contact Finish Thickness - Mating	30.0μin 0.76μm
Contact Finish Thickness - Post	100.0μin 2.54μm
PCB Thickness	1.5748mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

5-146253-4 Product Details

5-146253-4 Overview

Currently, it is packaged in Header, Breakaway.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the AMPMODU Mod II Series, it belongs to the range of products of that series.Through Hole represents the mounting point for the part.You're going to need 30V to power this memory.-65°C~105°C Operating Temperature is the default operating temperature for the device.
