52042-1 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available on our website
SOT-23
52042-1 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Lifecycle Status
ACTIVE (Last Updated: 4 days ago)
Factory Lead Time
4 Weeks
Contact Material
Copper
Contact Plating
Tin
Mount
Stud
Mounting Type
Free Hanging (In-Line)
Material - Insulation
Poly-Vinyl Chloride (PVC)
Packaging
Bulk
Series
Plasti-Grip
Published
2002
Feature
Serrated Termination
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
Crimp
ECCN Code
EAR99
Max Operating Temperature
90°C
Color
Blue
Gender
Female
Voltage - Rated
600V
HTS Code
8536.90.40.00
Orientation
Straight
Depth
12.7mm
Voltage - Rated AC
600V
Wire Gauge
6 AWG
ELV
Compliant
Wire/Cable Gauge
6 AWG
Terminal and Terminal Block Type
RING TERMINAL
Insulation Diameter
0.436 (11.07mm)
Insulation
Insulated
Terminal Type
Circular
Stud/Tab Size
1/4 Stud
Insulated Wire Support
Yes
Heavy Duty
No
Stud Diameter
6.731 mm
Number of Holes
1
Stud Size
M6
Length
46.8376mm
Width
12.7mm
Thickness
0.045 1.14mm
Length - Overall
1.844 46.84mm
Width - Outer Edges
0.500 12.70mm
Tongue Thickness
1.14mm
REACH SVHC
Unknown
RoHS Status
RoHS Compliant
Lead Free
Not Applicable
In-Stock:5498 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$1.42000
$1.42
500
$1.4058
$702.9
1000
$1.3916
$1391.6
1500
$1.3774
$2066.1
2000
$1.3632
$2726.4
2500
$1.349
$3372.5

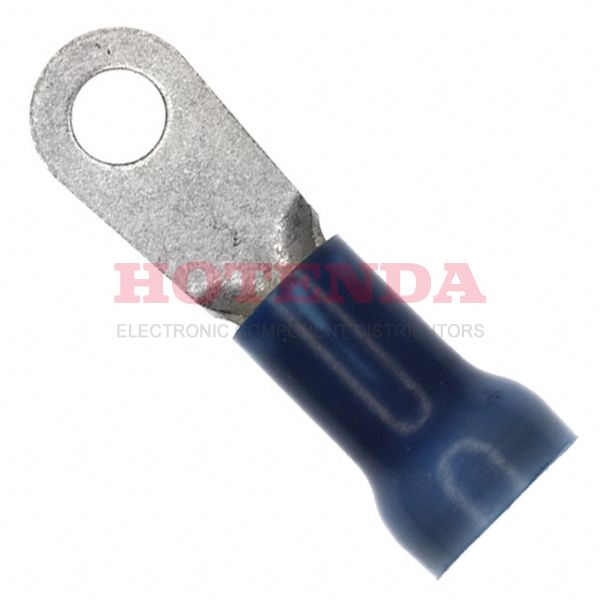

52042-1 Product Details
Description:
TE Connectivity / AMP 52042-1 Ring Connectors are ring tongue terminals designed for use in electrical connections. These terminals are made of tin-plated copper and feature a 6AWG wire size and a 46.84mm length. The terminals have a 12.7mm width and are available in loose pieces.
Features:
• Made of tin-plated copper • 6AWG wire size • 46.84mm length • 12.7mm width • Available in loose pieces
Applications:
TE Connectivity / AMP 52042-1 Ring Connectors are suitable for use in a variety of electrical connections, including automotive, marine, and industrial applications. They are commonly used in the assembly of electrical harnesses, switches, and other electrical components.
