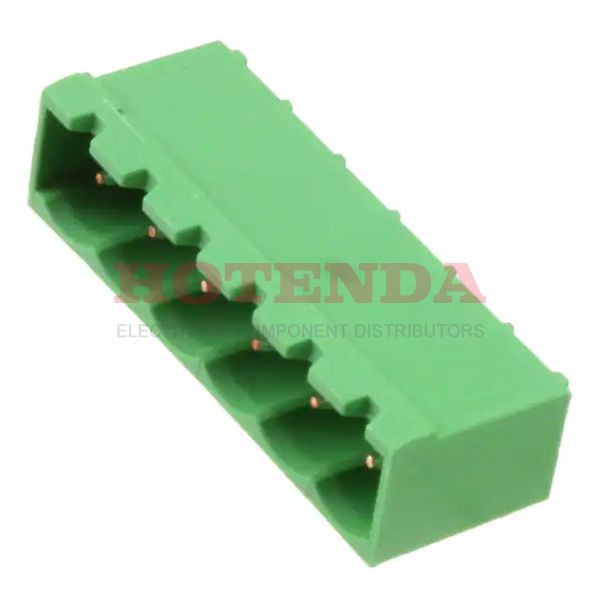

Name: 796638-6
Brand: TE Connectivity AMP Connectors
SKU: 796638-6
Price: 2.23000 USD
Availability: InStock

new-10%

796638-6

Manufacturer part number:796638-6

Manufacturer:TE Connectivity AMP Connectors

Description:796638-6 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:796638-6 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Lifecycle Status	ACTIVE (Last Updated: 6 days ago)
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~110°C
Packaging	Bulk
Published	2007
Series	Termi-Blok, Buchanan
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Header
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	6
Color	Green
Voltage - Rated	300V
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	12mm
Insulation Height	0.329 8.36mm
Current Rating	15A
Termination Style	Solder
Voltage - Rated AC	300V
Shrouding	Yes
Voltage	300V
Contact Tail Length	0.138 3.50mm
ELV	Compliant
Max Voltage Rating (AC)	300V
Max Current Rating	15A
Number of Levels	1
Current	15A
Wire/Cable Gauge	12 AWG
Contact Mating Finish	Tin
Header Orientation	90°, Right Angle
Number of Positions Per Level	6
Height	13.94mm
Length	10.67mm
Plating Thickness	7μm
Length - Tail	3.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

796638-6 Product Details

796638-6 Overview

You'll get Header packages.This device has a mounting type of Through Hole.To package the product, we use a Bulk case.This product is part of the Termi-Blok, Buchanan Series.Through Hole represents the mounting point for the part.-40°C~110°C Operating Temperature is used by the device.Other Header, Male Pins, Shrouded (4 Side) products benefit from this part as well.
