Name: 796640-3
Brand: TE Connectivity AMP Connectors
SKU: 796640-3
Price: 3.26000 USD
Availability: InStock

new-10%

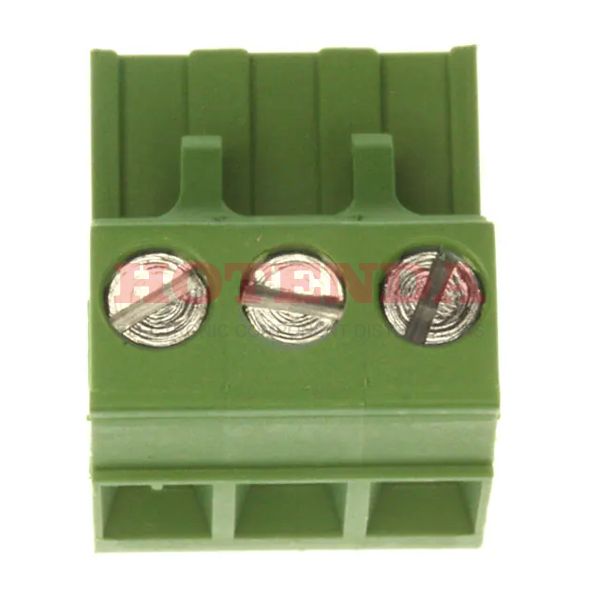

796640-3

Manufacturer part number:796640-3

Manufacturer:TE Connectivity AMP Connectors

Description:796640-3 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:796640-3 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	21 Weeks
Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Contact Material	Phosphor Bronze
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~110°C
Packaging	Bulk
Published	2007
Series	Buchanan
Feature	Retention Latches (Non-Wire Side), Side Stacking
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Plug
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	300V
Additional Feature	POLARIZED, 94V-0, PA66
Pitch	0.197 5.00mm
Orientation	Right Angle
Depth	18.4mm
Insulation Height	0.610 15.49mm
Current Rating	15A
Termination Style	Screw - Rising Cage Clamp
Voltage - Rated AC	300V
Approval Agency	UL
Number of Contacts	3
Voltage	300V
Max Voltage Rating (AC)	300V
Max Current Rating	15A
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Wire/Cable Gauge	30 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Torque - Screw	0.79 Nm (7.0 Lb-In)
Number of Ways	3
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.05-3mm2
Wire Strip Length	6-7.5mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Max Supply Voltage (AC)	300V
Length	15mm
Width	15.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

796640-3 Product Details

796640-3 Overview

The product comes in a package of Plug.It's mounted Free Hanging (In-Line).A Bulk case is used to package the product.It is part of the Buchanan Series of products.In addition, there are other features such as POLARIZED, 94V-0, PA66, to mention only a few.A number of features make the Retention Latches (Non-Wire Side), Side Stacking feature more powerful.Cable, Free Hanging is used to mount the part.It operates at an operating temperature of -40°C~110°C.It is a part that shares many benefits with other products from the Plug, Female Sockets line.
