Name: 796640-8
Brand: TE Connectivity AMP Connectors
SKU: 796640-8
Price: 4.35000 USD
Availability: InStock

new-10%

796640-8

Manufacturer part number:796640-8

Manufacturer:TE Connectivity AMP Connectors

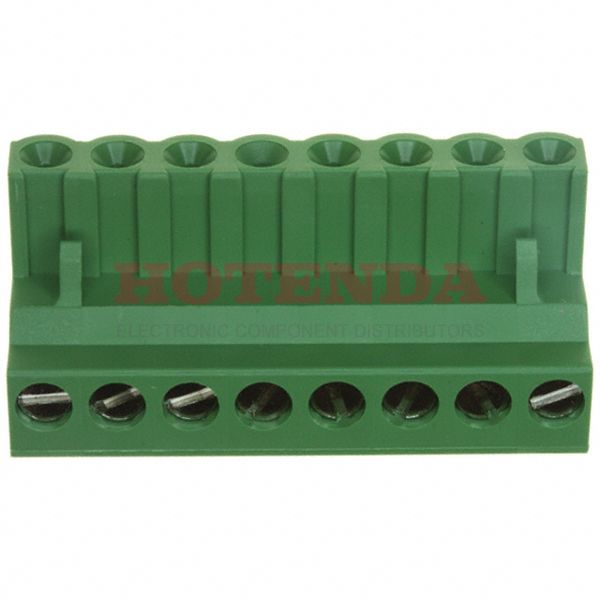

Description:Bulk 0.197 5.00mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets Buchanan Polyamide (PA66), Nylon 6/6 Tin Phosphor Bronze

Case Package:SOT-23

Datasheet:796640-8 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 2 days ago)
Factory Lead Time	22 Weeks
Contact Material	Phosphor Bronze
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Nylon
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~110°C
Packaging	Bulk
Series	Buchanan
Published	2007
Feature	Retention Latches (Non-Wire Side), Side Stacking
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Plug
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	300V
Additional Feature	POLARIZED, 94V-0, PA66
Pitch	0.197 5.00mm
Orientation	Right Angle
Depth	18.4mm
Insulation Height	0.610 15.49mm
Current Rating	15A
Termination Style	Screw - Rising Cage Clamp
Voltage - Rated AC	300V
Approval Agency	UL
Number of Contacts	8
Voltage	300V
ELV	Compliant
Max Voltage Rating (AC)	300V
Max Current Rating	15A
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	30 AWG
Wire/Cable Gauge	30 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Torque - Screw	0.79 Nm (7.0 Lb-In)
Number of Ways	8
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.05-3mm2
Wire Strip Length	6-7.5mm
Screw Size	M3
Max Supply Voltage (AC)	300V
Length	40mm
Material Flammability Rating	UL94 V-0
REACH SVHC	Unknown
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

796640-8 Product Details

796640-8 Overview

The packaging is Plug.Mounting type is Free Hanging (In-Line).To package the product, we use a Bulk case.This product is from the Buchanan Series.Then there's POLARIZED, 94V-0, PA66, for example.A number of advantages are provided by its Retention Latches (Non-Wire Side), Side Stacking feature.Mounted by Cable, Free Hanging.Device runs at -40°C~110°C Operating Temperature.As with other Plug, Female Sockets products, this part has a lot of benefits.
