Name: 796640-9
Brand: TE Connectivity AMP Connectors
SKU: 796640-9
Price: 10.00000 USD
Availability: InStock

new

796640-9

Manufacturer part number:796640-9

Manufacturer:TE Connectivity AMP Connectors

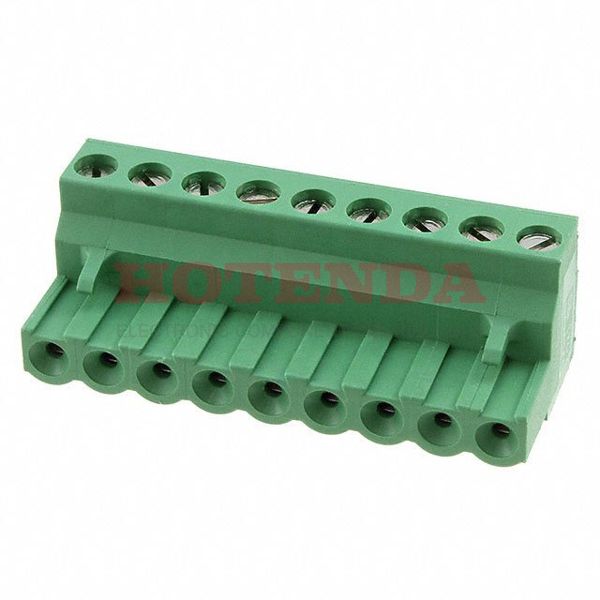

Description:796640-9 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:796640-9 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Lifecycle Status	ACTIVE (Last Updated: 5 days ago)
Contact Material	Phosphor Bronze
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~110°C
Packaging	Bulk
Published	2007
Series	Buchanan
Feature	Retention Latches (Non-Wire Side), Side Stacking
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Connector Type	Plug
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	300V
Pitch	0.197 5.00mm
Orientation	Right Angle
Insulation Height	0.610 15.49mm
Current Rating	15A
Termination Style	Screw - Rising Cage Clamp
Voltage - Rated AC	300V
Number of Contacts	9
Voltage	300V
ELV	Compliant
Max Current Rating	15A
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Torque - Screw	0.79 Nm (7.0 Lb-In)
Number of Ways	4
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.05-3mm2
Wire Strip Length	6-7.5mm
Screw Size	M3
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

796640-9 Product Details

796640-9 Overview

Currently, it is packaged in Plug.Mounting type Free Hanging (In-Line) is assigned to the device.Packaging for the product is carried out via a Bulk case.Product number Buchanan belongs to the Buchanan Series.A number of advantages can be derived from its Retention Latches (Non-Wire Side), Side Stacking feature.Part Cable, Free Hanging is mounted to the part.Operating temperature is set to -40°C~110°C.As with other Plug, Female Sockets products, this part has a lot of benefits.
