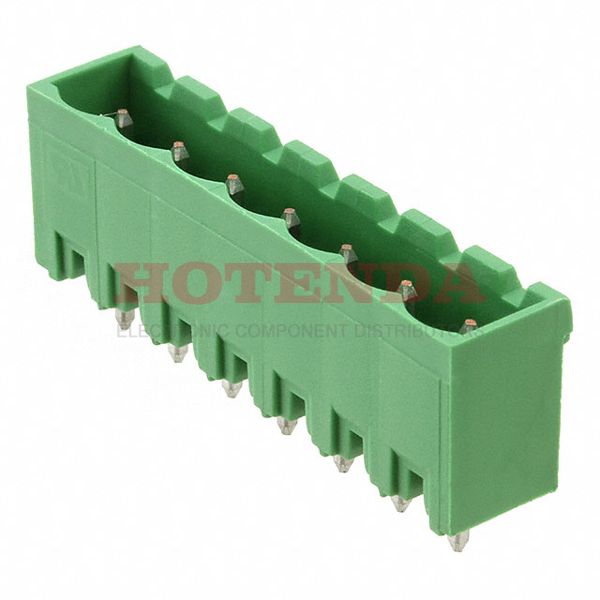

Name: 796642-7
Brand: TE Connectivity AMP Connectors
SKU: 796642-7
Price: 2.30000 USD
Availability: InStock

new-10%

796642-7

Manufacturer part number:796642-7

Manufacturer:TE Connectivity AMP Connectors

Description:796642-7 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:796642-7 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~110°C
Packaging	Bulk
Published	2007
Series	Buchanan
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Header
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Voltage - Rated	300V
Additional Feature	PA 6-6, 94V-0
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Insulation Height	0.472 12.00mm
Current Rating	15A
Termination Style	Solder
Voltage - Rated AC	300V
Voltage	300V
Contact Tail Length	0.138 3.50mm
ELV	Compliant
Max Current Rating	15A
Number of Levels	1
Current	15A
Contact Mating Finish	Tin
Number of Decks	1
Number of Ways	17
Safety Approval	UL
Header Orientation	Vertical
Number of Positions Per Level	7
Fastening Method	CONNECTOR
Length - Tail	3.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

796642-7 Product Details

796642-7 Overview

The packaging is Header.This device has a mounting type of Through Hole.To package the product, a Bulk case is used.Product number Buchanan belongs to the Buchanan Series.Then there's PA 6-6, 94V-0, for example.There is a mounting hole at Through Hole.This device runs at -40°C~110°C operating temperature.This part shares lots of benefits with other Header, Male Pins, Shrouded (4 Side) products.
