Name: 796644-6
Brand: TE Connectivity AMP Connectors
SKU: 796644-6
Price: 2.23000 USD
Availability: InStock

new-10%

796644-6

Manufacturer part number:796644-6

Manufacturer:TE Connectivity AMP Connectors

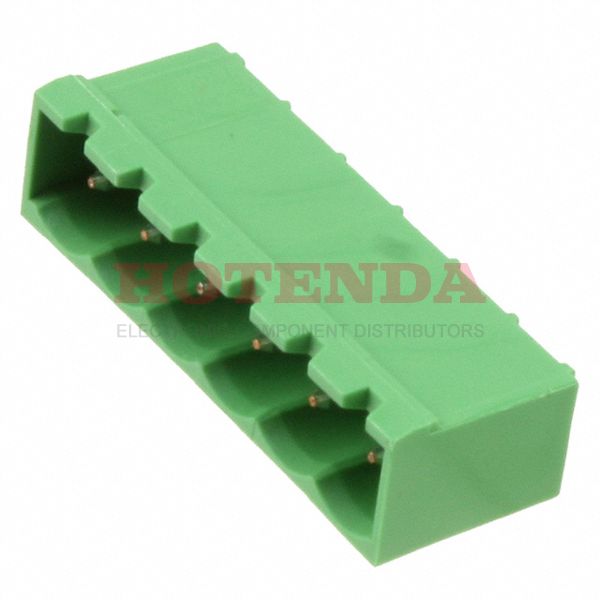

Description:796644-6 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:796644-6 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	21 Weeks
Lifecycle Status	ACTIVE (Last Updated: 4 days ago)
Contact Material	Copper Alloy
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~110°C
Packaging	Bulk
Published	2007
Series	Termi-Blok, Buchanan
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	6
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	300V
Pitch	0.197 5.00mm
Orientation	Right Angle
Depth	12mm
Insulation Height	0.329 8.36mm
Current Rating	15A
Termination Style	Solder
Voltage - Rated AC	300V
Approval Agency	UL
Number of Contacts	6
Housing Color	Green
Voltage	300V
Contact Tail Length	0.138 3.50mm
ELV	Compliant
Max Voltage Rating (AC)	300V
Max Current Rating	15A
Number of Levels	1
Current	15A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	30 AWG
Number of Poles	6
Contact Mating Finish	Tin
Voltage - UL	300V
Current - UL	15A
Positions Per Level	6
Header Orientation	90°, Right Angle
Number of Positions Per Level	6
Length	32mm
Length - Tail	3.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

796644-6 Product Details

796644-6 Overview

The product comes in a package of Header.Through Hole is the mounting type for the device.Packaged in a Bulk case.Product number Termi-Blok, Buchanan belongs to the Termi-Blok, Buchanan Series.The best time to use this device is when the temperature is below 105°C.Minimum temperature is -40°C.Part Through Hole is mounted to the part.It operates at an operating temperature of -40°C~110°C.It shares many benefts with other Header, Male Pins, Shrouded (4 Side) products.
