Name: 796683-3
Brand: TE Connectivity AMP Connectors
SKU: 796683-3
Price: 1.67000 USD
Availability: InStock

new-10%

796683-3

Manufacturer part number:796683-3

Manufacturer:TE Connectivity AMP Connectors

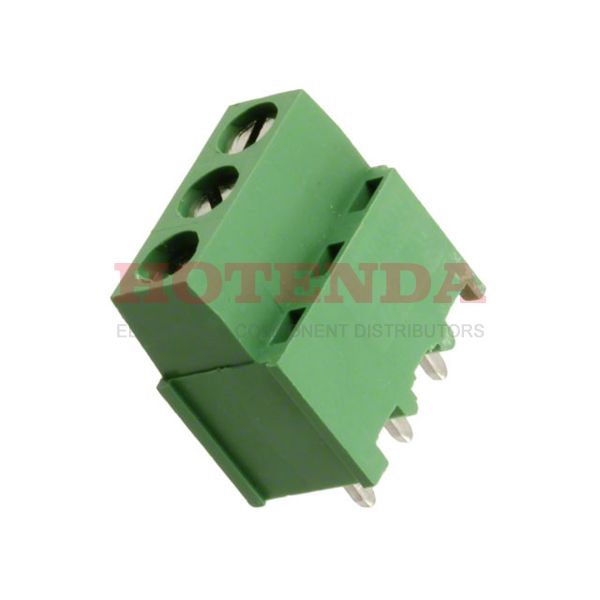

Description:0.197 5.00mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan

Case Package:SOT-23

Datasheet:796683-3 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Factory Lead Time	12 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Brass - Nickel Plated
Screw Material - Plating	Brass - Nickel Plated
Packaging	Bulk
Series	Buchanan
Published	2007
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw, Solder
Connector Type	Receptacle
Number of Positions	3
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Color	Green
Number of Rows	1
Voltage - Rated	300V
Pitch	0.197 5.00mm
Orientation	Straight
Depth	9mm
Number of Contacts	3
Housing Color	Green
Wire Gauge	12-30 AWG
Voltage	300V
ELV	Compliant
Number of Circuits	3
Max Current Rating	17.5A
Plating	Brass
Number of Levels	1
Current	17.5A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Poles	3
Torque - Screw	0.79 Nm (7.0 Lb-In)
Positions Per Level	3
Thread Size	M3
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Number of Positions Per Level	3
Max Supply Voltage (AC)	300V
Length	15.5mm
Length - Tail	3.5mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

796683-3 Product Details

796683-3 Overview

This product is packaged in a Receptacle carton.Through Hole is the mounting type for the device.The product is packaged in a Bulk case.It's part of the Buchanan Series.Ideally, it should be used when the temperature is below 105°C.Temperature must be -40°C to operate this device.Many aspects of its Interlocking (Side) feature increase its effectiveness.Mounting of the part is based on Through Hole.A circuit of 3 makes up this part.
