Name: 796689-3
Brand: TE Connectivity AMP Connectors
SKU: 796689-3
Price: 2.12000 USD
Availability: InStock

new-10%

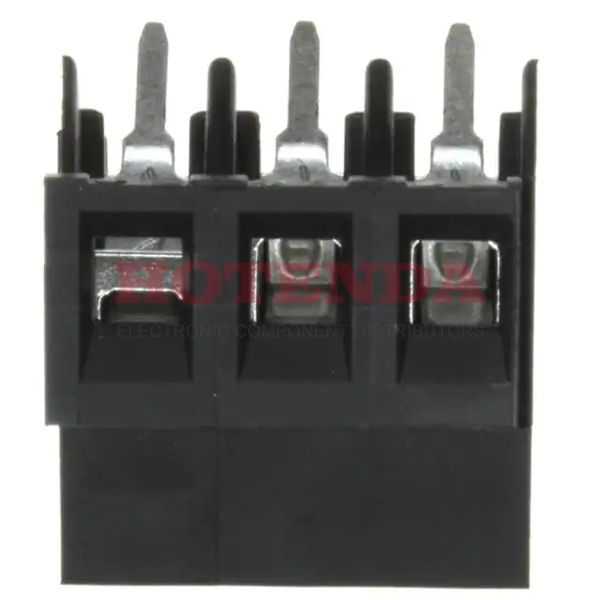

796689-3

Manufacturer part number:796689-3

Manufacturer:TE Connectivity AMP Connectors

Description:0.197 5.00mm Black Bulk Polyamide (PA66), Nylon 6/6 Through Hole 35° (145°) Angle with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan

Case Package:SOT-23

Datasheet:796689-3 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 4 months ago)
Factory Lead Time	12 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Brass - Tin Plated
Screw Material - Plating	Brass - Nickel Plated
Packaging	Bulk
Series	Buchanan
Published	2007
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	3
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Color	Black
Number of Rows	1
Voltage - Rated	300V
Pitch	0.197 5.00mm
Orientation	Straight
Depth	12.5mm
Current Rating	17.5A
Voltage - Rated AC	250V
Number of Contacts	3
Housing Color	Black
Wire Gauge	12-30 AWG
Voltage	300V
ELV	Compliant
Number of Circuits	3
Max Voltage Rating (AC)	300V
Max Current Rating	17.5A
Plating	Brass, Tin
Number of Levels	1
Current	17.5A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Torque - Screw	0.79 Nm (7.0 Lb-In)
Positions Per Level	3
Thread Size	M3
Mating Orientation	35° (145°) Angle with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Number of Positions Per Level	3
Max Supply Voltage (AC)	300V
Length	15mm
Length - Tail	3.81mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

796689-3 Product Details

796689-3 Overview

A Receptacle package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the Buchanan Series of products.Whenever it's below 105°C, it's best to use it.The device must operate at a temperature of -40°C at all times.A number of features make it more powerful because of its Interlocking (Side) feature.Through Hole mounts the part.3 circuits make up the part.
