Name: 796689-5
Brand: TE Connectivity AMP Connectors
SKU: 796689-5
Price: 3.15000 USD
Availability: InStock

new-10%

796689-5

Manufacturer part number:796689-5

Manufacturer:TE Connectivity AMP Connectors

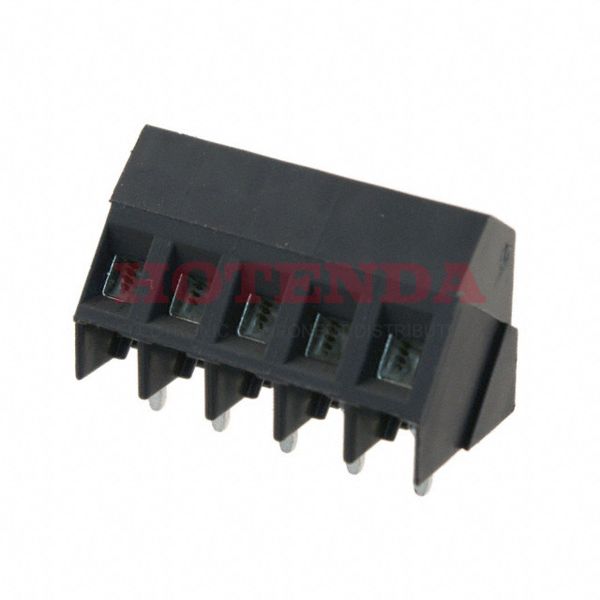

Description:0.197 5.00mm Black Bulk Polyamide (PA66), Nylon 6/6 Through Hole 35° (145°) Angle with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan

Case Package:SOT-23

Datasheet:796689-5 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Factory Lead Time	12 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Brass - Tin Plated
Screw Material - Plating	Brass - Nickel Plated
Packaging	Bulk
Series	Buchanan
Published	2007
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Color	Black
Number of Rows	1
Voltage - Rated	300V
Pitch	0.197 5.00mm
Orientation	Straight
Depth	12.5mm
Current Rating	17.5A
Number of Contacts	5
Wire Gauge	12-30 AWG
ELV	Compliant
Max Voltage Rating (AC)	300V
Max Current Rating	17.5A
Plating	Brass, Tin
Number of Levels	1
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	30 AWG
Number of Decks	1
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.79 Nm (7.0 Lb-In)
Number of Ways	5
Safety Approval	UL
Mating Orientation	35° (145°) Angle with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Max Supply Voltage (AC)	300V
Length	25mm
Length - Tail	3.81mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

796689-5 Product Details

796689-5 Overview

You get it in Receptacle packaging.Mounting type Through Hole is selected for the device.Packaged in a Bulk case.A member of the Buchanan Series.Using it at a temperature below 105°C is ideal.A minimum temperature of -40°C is needed for this device.This feature renders it more powerful in a number of ways because of its Interlocking (Side) feature.There's a Through Hole mount on the part.
