796690-9

Manufacturer part number:796690-9

Manufacturer:TE Connectivity AMP Connectors

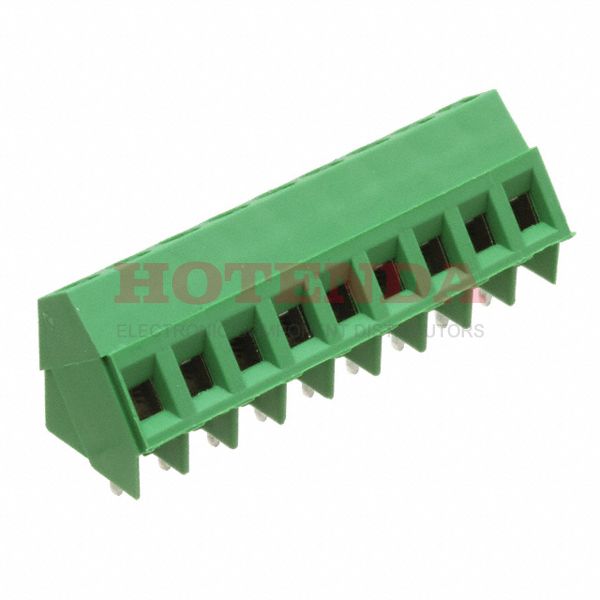

Description:0.197 5.00mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole 35° (145°) Angle with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan

Case Package:SOT-23

Datasheet:796690-9 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 5 days ago)
Factory Lead Time	21 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Brass - Tin Plated
Screw Material - Plating	Brass - Nickel Plated
Packaging	Bulk
Series	Buchanan
Published	2007
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Connector Type	Receptacle
Color	Green
Number of Rows	1
Voltage - Rated	300V
Pitch	0.197 5.00mm
Current Rating	17.5A
Number of Contacts	9
Wire Gauge	12-30 AWG
ELV	Compliant
Max Current Rating	17.5A
Plating	Brass, Tin
Number of Levels	1
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.79 Nm (7.0 Lb-In)
Number of Ways	9
Safety Approval	UL
Mating Orientation	35° (145°) Angle with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Wire Cross Section	2.5 mm2
Length - Tail	3.81mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

796690-9 Product Details

796690-9 Overview

A Receptacle package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the Buchanan Series of products.A number of features make it more powerful because of its Interlocking (Side) feature.Through Hole mounts the part.
