Name: 796739-3
Brand: TE Connectivity AMP Connectors
SKU: 796739-3
Price: 6.54000 USD
Availability: InStock

new-10%

796739-3

Manufacturer part number:796739-3

Manufacturer:TE Connectivity AMP Connectors

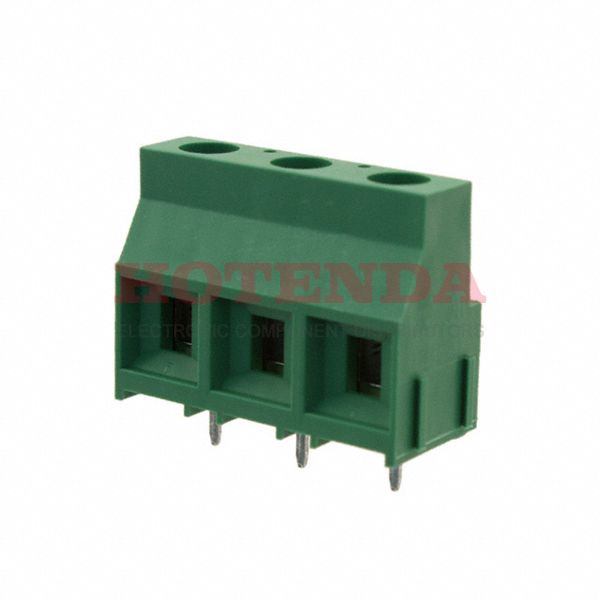

Description:0.375 9.53mm Green Tray Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 10-30 AWG Buchanan

Case Package:SOT-23

Datasheet:796739-3 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 5 days ago)
Factory Lead Time	21 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Clamp Material - Plating	Brass - Nickel Plated
Screw Material - Plating	Brass - Nickel Plated
Packaging	Tray
Series	Buchanan
Published	2007
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Color	Green
Number of Rows	1
Voltage - Rated	600V
Additional Feature	PA66, 94V-0
Pitch	0.375 9.53mm
Orientation	Straight
Depth	12.5mm
Current Rating	30A
Number of Contacts	3
Wire Gauge	10-30 AWG
Max Voltage Rating (AC)	600V
Max Current Rating	30A
Number of Levels	1
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	10 AWG
Number of Poles	2
Number of Decks	1
Terminal and Terminal Block Type	STRIP TERMINAL BLOCK
Torque - Screw	0.79 Nm (7.0 Lb-In)
Number of Ways	3
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Max Supply Voltage (AC)	600V
Length	29.16mm
Length - Tail	5.0038mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

796739-3 Product Details

796739-3 Overview

Packaging for this item is Receptacle.There is a mounting type of Through Hole for this device.It is necessary to use a Tray case for packaging the product.This product is part of the Buchanan Series.Moreover, there are a number of other features, including PA66, 94V-0, to name just a few.In many ways, its Interlocking (Side) feature makes it more powerful.Through Hole is used to mount the part.
