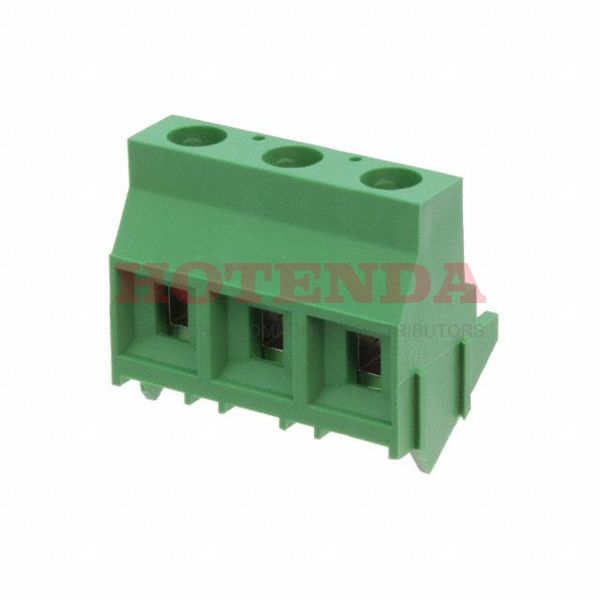

Name: 796741-3
Brand: TE Connectivity AMP Connectors
SKU: 796741-3
Price: 5.91000 USD
Availability: InStock

new-10%

796741-3

Manufacturer part number:796741-3

Manufacturer:TE Connectivity AMP Connectors

Description:0.375 9.53mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole 35° (145°) Angle with Board Screw - Rising Cage Clamp 1 Levels 10-24 AWG Buchanan

Case Package:SOT-23

Datasheet:796741-3 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 4 days ago)
Factory Lead Time	12 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Clamp Material - Plating	Brass - Nickel Plated
Screw Material - Plating	Brass - Nickel Plated
Packaging	Bulk
Series	Buchanan
Published	2007
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Max Operating Temperature	100°C
Min Operating Temperature	-35°C
Color	Green
Number of Rows	1
Voltage - Rated	600V
Pitch	0.375 9.53mm
Orientation	Right Angle
Current Rating	30A
Number of Contacts	3
Wire Gauge	10-24 AWG
ELV	Compliant
Max Current Rating	30A
Number of Levels	1
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	10 AWG
Number of Decks	1
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.79 Nm (7.0 Lb-In)
Number of Ways	3
Safety Approval	UL
Mating Orientation	35° (145°) Angle with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Max Supply Voltage (AC)	600V
Length	29.16mm
Length - Tail	5.0038mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

796741-3 Product Details

796741-3 Overview

Packaging is Receptacle.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Buchanan Series, it can be found in this category.Temperatures below 100°C are best for using it.There's a minimum temperature of -35°C for this device.With its Interlocking (Side) feature, it is more powerful in many ways.In this case, Through Hole mounts the part.
