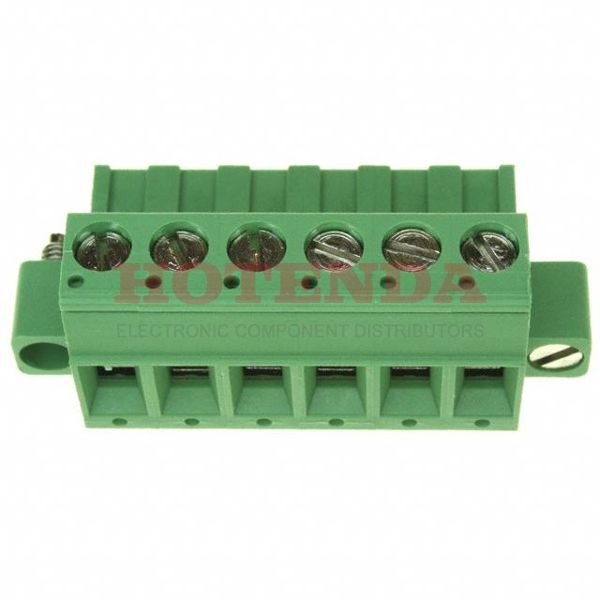

Name: 796859-6
Brand: TE Connectivity AMP Connectors
SKU: 796859-6
Price: 5.33000 USD
Availability: InStock

new-10%

796859-6

Manufacturer part number:796859-6

Manufacturer:TE Connectivity AMP Connectors

Description:796859-6 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:796859-6 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	13 Weeks
Lifecycle Status	ACTIVE (Last Updated: 1 week ago)
Contact Material	Phosphor Bronze
Mount	Cable, Free Hanging, Panel
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~110°C
Packaging	Bulk
Published	2007
Series	Buchanan
Feature	Mating Flange
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Plug
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	300V
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	15.5mm
Insulation Height	0.610 15.49mm
Current Rating	15A
Termination Style	Screw - Rising Cage Clamp
Voltage - Rated AC	300V
Number of Contacts	6
Voltage	300V
ELV	Compliant
Max Current Rating	15A
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Torque - Screw	0.79 Nm (7.0 Lb-In)
Number of Ways	16
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.05-3mm2
Wire Strip Length	6-7.5mm
Screw Size	M3
Length	40.28mm
Width	18.4mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

796859-6 Product Details

796859-6 Overview

Plug packaging is included.Mounting type Free Hanging (In-Line) is assigned to the device.It's packaged in a Bulk case.Buchanan Series product.Its Mating Flange feature renders it more powerful in many ways.It is mounted by Cable, Free Hanging, Panel.As a result, the device runs at -40°C~110°C Operating Temperature.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
