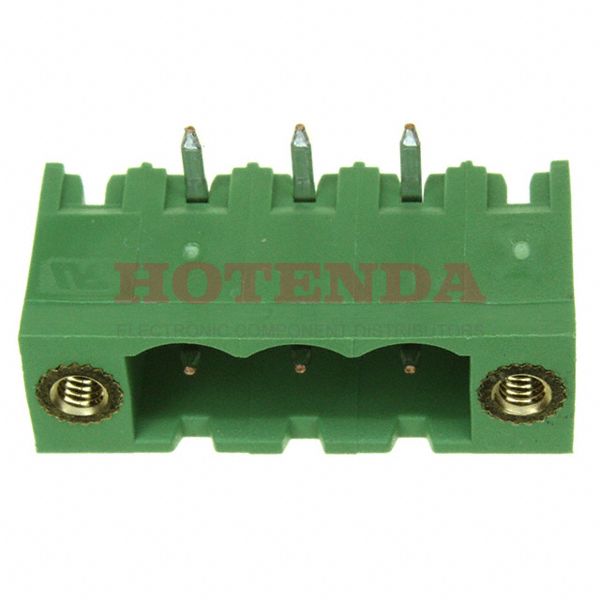

Name: 796866-3
Brand: TE Connectivity AMP Connectors
SKU: 796866-3
Price: 3.63000 USD
Availability: InStock

new-10%

796866-3

Manufacturer part number:796866-3

Manufacturer:TE Connectivity AMP Connectors

Description:796866-3 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:796866-3 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	21 Weeks
Lifecycle Status	ACTIVE (Last Updated: 1 week ago)
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~110°C
Packaging	Bulk
Published	2007
Series	Buchanan
Feature	Mating Flange
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Header
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	3
Color	Green
Number of Rows	1
Voltage - Rated	300V
Additional Feature	PA66, 94V-0
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	12mm
Insulation Height	0.329 8.36mm
Current Rating	15A
Termination Style	Solder
Voltage - Rated AC	300V
Voltage	300V
Contact Tail Length	0.138 3.50mm
ELV	Compliant
Max Voltage Rating (AC)	300V
Max Current Rating	15A
Number of Levels	1
Current	15A
Contact Mating Finish	Tin
Number of Decks	1
Number of Ways	13
Safety Approval	UL
Header Orientation	90°, Right Angle
Number of Positions Per Level	3
Fastening Method	CONNECTOR
Length	25.32mm
Length - Tail	3.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

796866-3 Product Details

796866-3 Overview

A Header packaging is included.A Through Hole mounting type is specified for the device.A Bulk case is used for packaging.This is from the Buchanan Series.Additionally, there are other features, such as PA66, 94V-0.This feature renders it more powerful in a number of ways because of its Mating Flange feature.It is mounted by Through Hole.It runs at -40°C~110°C Operating Temperature.With this part, you get a lot of benefits that you won't find in other Header, Male Pins, Shrouded (4 Side) products.
