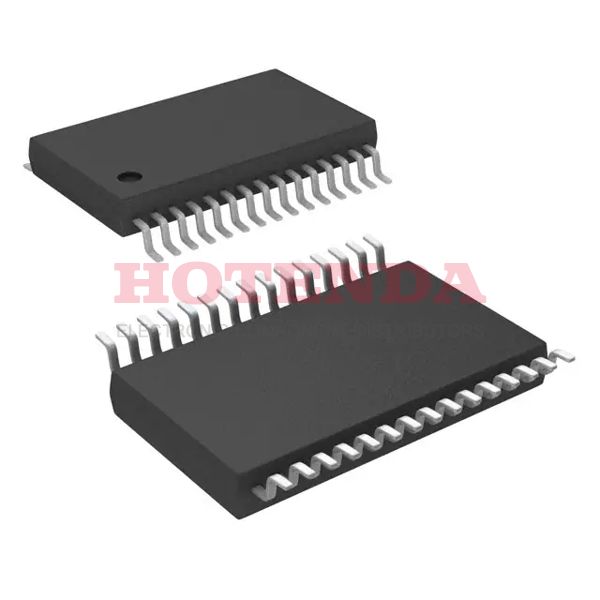

BQ20Z90DBT-V110G4 Overview
30-TFSOP (0.173, 4.40mm Width) is the appropriate package for battery instrument. Analog IC POWER SUPPLY SUPPORT CIRCUIT is used in this power IC. The number of channels available is 1. In total, it has 30 pins. The case is labeled Tube. For mounting, use Surface Mount. There should be a minimum supply voltage of 2.4V volts for this electrical part. In Surface Mount, this electronic component is mounted. A voltage of 2.6V volts is recommended for this power IC. It is capable of delivering the Battery Monitor functions. This electric part performs best at temperatures in the range of -40°C~85°C TA. There is Lithium Ion/Polymer in the battery chemistry of this electronic component. It is important to keep this battery management IC set to 2.5V at all times. The family BQ20Z90 is the basis for it. A voltage in the range of 2.5V is specified for this power management IC's operating supply voltage. The number Impedance Track™ corresponds to the series of the battery protector ic.
BQ20Z90DBT-V110G4 Features
Available in 30-TFSOP (0.173, 4.40mm Width) Package
with 30 Pins
Mounting Type: Surface Mount
Battery Chemistry : Lithium Ion/Polymer
operate supply voltage at the range of 2.5V
Output Voltage at the range of 14.4V
BQ20Z90DBT-V110G4 Applications
There are a lot of Texas Instruments
BQ20Z90DBT-V110G4 Battery Management ICs applications.
- Trucks
- Non-road type vehicles
- Golf carts
- Electric-powered machinery
- Fork lifts
- Grid power infrastructure
- Cell phone towers
- A/C power substations
- Internet infrastructure equipment
- Aviation ground support systems
