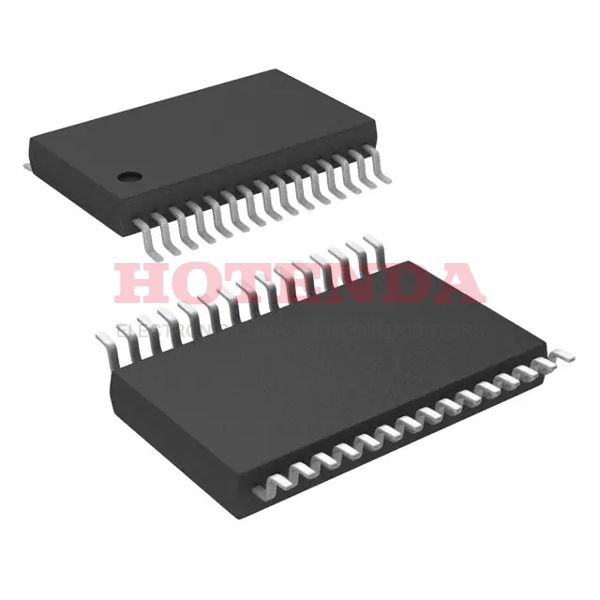

BQ20Z90DBT-V150G4 Overview
For the 30-TFSOP (0.173, 4.40mm Width) package, it is appropriate. The analog IC in this power management IC is POWER SUPPLY SUPPORT CIRCUIT. As of right 1w, there are 1 channels available. The total number of pins is 30. It comes in a case with a Tube. Voltage must not drop below 2.4V volts to operate this electrical part. There is a mounting point for this electronic component in the direction of Surface Mount. Supply voltage shouldn't exceed 2.6V volts for this power IC. A Battery Monitor function can be delivered by battery instrument. Optimal performance of the electric part depends on operating temperature at -40°C~85°C TA. This electronic component uses Lithium Ion/Polymer battery chemistry. Ensure that this battery management IC is always set to 2.5V. This is a family based on BQ20Z90. In this power management IC, the operating supply voltage is set to 2.5V. A battery protection IC's series is represented by Impedance Track™.
BQ20Z90DBT-V150G4 Features
Available in 30-TFSOP (0.173, 4.40mm Width) Package
with 30 Pins
Mounting Type: Surface Mount
Battery Chemistry : Lithium Ion/Polymer
operate supply voltage at the range of 2.5V
BQ20Z90DBT-V150G4 Applications
There are a lot of Texas Instruments
BQ20Z90DBT-V150G4 Battery Management ICs applications.
- Non-road type vehicles
- Golf carts
- Electric-powered machinery
- Fork lifts
- Grid power infrastructure
- Cell phone towers
- A/C power substations
- Internet infrastructure equipment
- Aviation ground support systems
- Tower communications
