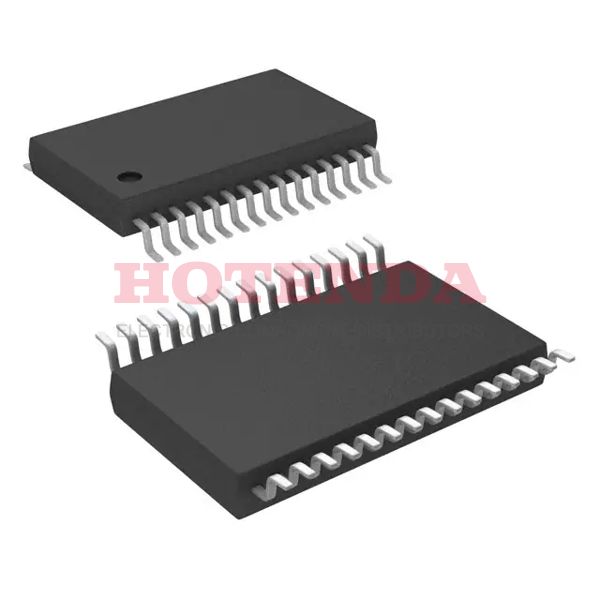

BQ20Z90DBTR Overview
A 30-TFSOP (0.173, 4.40mm Width) package would be appropriate for this. IC POWER SUPPLY SUPPORT CIRCUIT is the system battery's analog IC. The available channels are 1. Currently, there are 30 pins on it. Tape & Reel (TR) cases are used for packaging. Surface Mount is the mount number for this electronic part. A minimum supply voltage of 2.4V volts is required for this electric part. Surface Mount is positioned in the way of this electronic part. Ensure that the power management IC's supply voltage does not exceed 2.6V volts. It can provide functions of type Battery Monitor. For the electronic part to perform properly, it should be operated at temperature -40°C~85°C TA. A battery chemistry of Lithium Ion/Polymer is used in this electronic part. It is recommended that this battery protection IC be set to 2.5V at all times. The model is based on the BQ20Z90 family. It is specified that the operating supply voltage for this battery instrument is 2.5V. The power IC's series corresponds to Impedance Track™.
BQ20Z90DBTR Features
Available in 30-TFSOP (0.173, 4.40mm Width) Package
with 30 Pins
Mounting Type: Surface Mount
Battery Chemistry : Lithium Ion/Polymer
operate supply voltage at the range of 2.5V
BQ20Z90DBTR Applications
There are a lot of Texas Instruments
BQ20Z90DBTR Battery Management ICs applications.
- Fork lifts
- Grid power infrastructure
- Cell phone towers
- A/C power substations
- Internet infrastructure equipment
- Aviation ground support systems
- Tower communications
- Weather stations
- Distributed energy resources
- Solar and wind-generating plants
