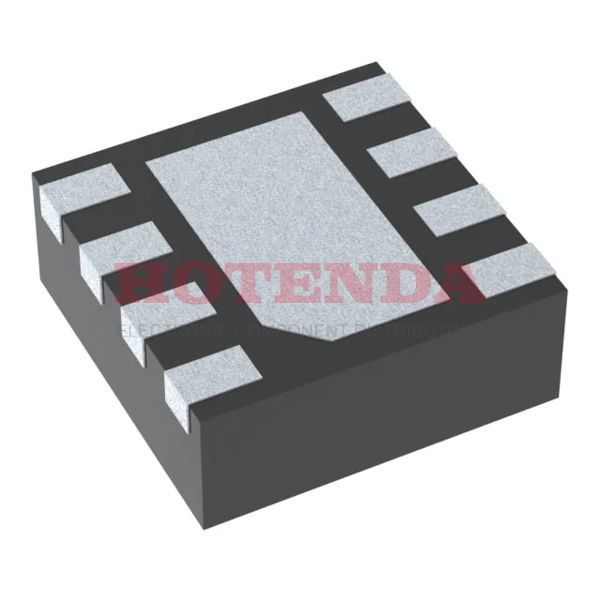

BQ296213DSGT Overview
For the 8-WFDFN Exposed Pad package, it is appropriate. The analog IC in this power management IC is POWER SUPPLY SUPPORT CIRCUIT. As of right 4w, there are 4 channels available. The total number of pins is 8. It comes in a case with a Tape & Reel (TR). There is a mounting point for this electronic component in the direction of Surface Mount. A Battery Protection function can be delivered by battery instrument. Optimal performance of the electric part depends on operating temperature at -40°C~110°C TA. This electronic component uses Lithium-Ion battery chemistry. Ensure that this battery management IC is always set to 14.4V. This is a family based on BQ296213. As soon as Vsup reaches 20V, the maximal supply voltage is reached. Ensure that Vsup (the supply voltage) is greater than 3V volts.
BQ296213DSGT Features
Available in 8-WFDFN Exposed Pad Package
with 8 Pins
Mounting Type: Surface Mount
Battery Chemistry : Lithium-Ion
operate supply voltage at the range of 14.4V
Supply Voltage-Max (Vsup) : 20V
BQ296213DSGT Applications
There are a lot of Texas Instruments
BQ296213DSGT Battery Management ICs applications.
- Non-road type vehicles
- Golf carts
- Electric-powered machinery
- Fork lifts
- Grid power infrastructure
- Cell phone towers
- A/C power substations
- Internet infrastructure equipment
- Aviation ground support systems
- Tower communications
