INA129SHKJ Overview

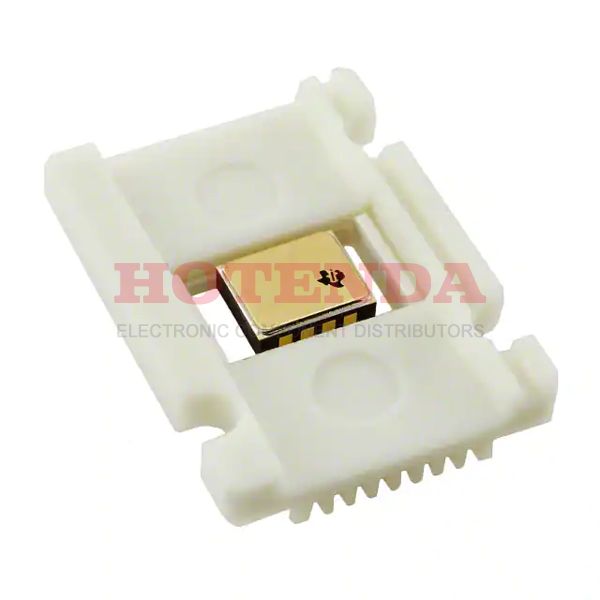

There is a 8-CFlatpack case package that contains the instrumentation amplifiers. An op amp ic of the Instrumentation type. Upon delivery, op amp ic is packaged in a Tube case. In recent months, the number of terminations has approached 8. A total of 8 pins are located on this board. This linear amplifier should be powered by an 15V battery. 8 pins are included on the operational amplifiers. In terms of the input offset voltage, instrumentation amplifier rates at 25μV. This electronic part is recommended for mounting type Surface Mount. In relation to the operating temperature of this buffer op amp, it works well at an average of -55°C~210°C . It is possible to operate this buffer amplifier from a supply current of 700μA . It is recommended to keep the voltage gain at 80dB at all times. On this instrumentation amplifier, there are 1 circuits that are connected together. The buffer op amp is rated for an operating voltage of 3 when it comes to the power supply. Currently, linear amplifier is operating with a quiescent current of 2mA. The op amp resistance should stay within the range of 10GOhm.
INA129SHKJ Features
8 Pins
supply voltage of 15V
80dB voltage gain
Resistance of 10GOhm
INA129SHKJ Applications
There are a lot of Texas Instruments INA129SHKJ Instrumentational OP Amps applications.
- Industrial applications including automation
- Radiation thermometry transducers
- Communication
- Power control
- Automatic control
- Thermocouples
- Navigation
- Digital cameras
- Proportional operation circuits
- Semiconductor detectors
