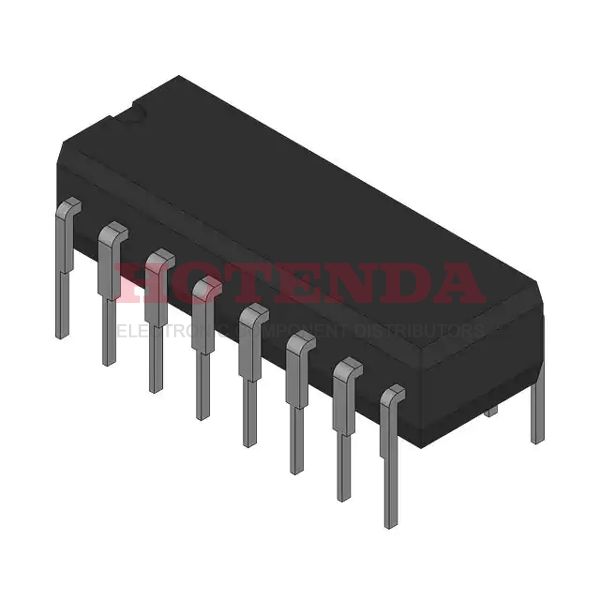

Name: LM2575HVN-ADJ/NOPB
Brand: Texas Instruments
SKU: LM2575HVN-ADJ/NOPB
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Lifecycle Status	ACTIVE (Last Updated: 2 days ago)
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	16-DIP (0.300, 7.62mm)
Number of Pins	16
Operating Temperature	-40°C~125°C TJ
Packaging	Tube
Series	SIMPLE SWITCHER®
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	16
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Terminal Position	DUAL
Terminal Pitch	2.54mm
Base Part Number	LM2575
Function	Step-Down
Number of Outputs	1
Efficiency	77 %
Voltage - Input (Max)	60V
Output Voltage	57V
Output Type	Adjustable
Max Output Current	1A
Operating Supply Voltage	60V
Voltage - Input (Min)	4V
Input Voltage-Nom	12V
Analog IC - Other Type	SWITCHING REGULATOR
Output Configuration	Positive
Quiescent Current	10mA
Voltage - Output (Min/Fixed)	1.23V
Topology	Buck
Control Mode	VOLTAGE-MODE
Frequency - Switching	52kHz
Control Technique	PULSE WIDTH MODULATION
Synchronous Rectifier	No
Height	5.08mm
Length	21.755mm
Width	6.35mm
Thickness	3.429mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

LM2575HVN-ADJ/NOPB Product Details

LM2575HVN-ADJ/NOPB Overview

For optimal performance, this voltage regulator makes use of the Tube package. In this voltage regulator, there are a total of 16 terminations. There is one type of analog IC that this voltage regulator is equipped with, and that is the SWITCHING REGULATOR type. In order to save space, this harley voltage regulator is available in the 16-DIP (0.300, 7.62mm) package. There are 1 outputs configured on this voltage regulator 12v. There are output pins on this DC DC switching regulator that generate Adjustable output. Through Hole-mounting is compatible with this switching regulator. The operating temperature should be kept at -40°C~125°C TJ when the voltage regulator 12v is in operation. This DC-DC switching regulator has a switching frequency of 52kHz. The voltage regulator can operate with a dc to dc voltage regulator's minimum input voltage of 4V. As a result, the output voltage of the voltage regulator 12v (Min/Fixed) is 1.23V. Voltage regulator has a maximum input voltage of 60V. In order to meet the operation requirements,voltage regulator is designed to provide a nominal input voltage of 12V. The LM2575 family of DC/DC regulators includes this DC/DC regulator. The voltage DC DC switching regulator can produce is 57V volts. There are 16 pins that are used for the operation of the voltage regulator 12v. The maximum output current reaches 1A A to meet the switching regulator operation requirements. As a member of the SIMPLE SWITCHER® family of DC/DC regulators, this part is prominent in many specifications. 60V is the supply voltage for this DC-DC switching regulator. Despite external influences, voltage regulator consumes 10mA A of quiescent current.
