LM7372ILD/NOPB Overview

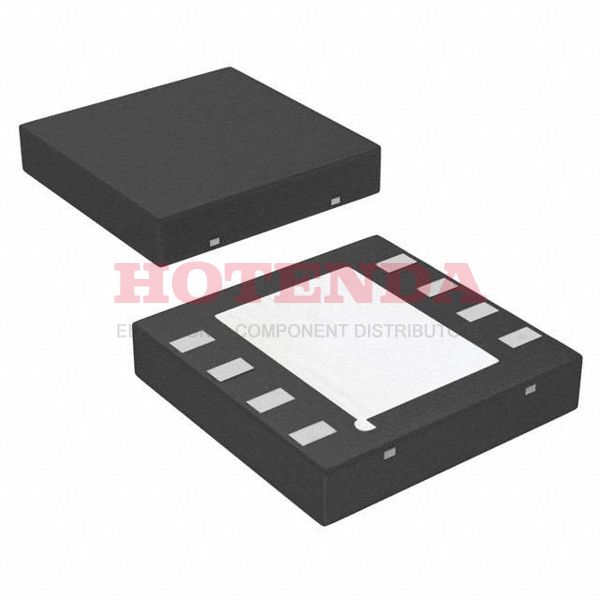

The linear amplifier is packaged in a 8-WDFN Exposed Pad case. The instrumentation amplifier in this picture is of the Voltage Feedback-type. Upon delivery, op amp ic is packaged in a Tape & Reel (TR) case. During the past two weeks, there have been close to 8 terminations. A total of 8 pins are attached to buffer op amp. This linear amplifier should be powered by an 5V battery. To be specific, this instrumentation amplifier is a type of Operational Amplifier. A total of 8 pins are present on the instrumentation amplifier. In terms of the input offset voltage, instrumentation amplifier rates at 2mV. It is recommended that this electronic component be mounted using the Surface Mount mounting type. In terms of operating temperature, this instrumentation amplifier performs well at a temperature of about -40°C~85°C . Using a supply current of 13mA , this buffer op amp will be able to operate. The voltage gain should stay at 78dB. There are 2 circuits on op amps. TAPE AND REEL is adopted to pack the instrumentation amplifier. The VIP? III indicates the series number of the op amp.
LM7372ILD/NOPB Features
8 Pins
supply voltage of 5V
78dB voltage gain
LM7372ILD/NOPB Applications
There are a lot of Texas Instruments LM7372ILD/NOPB Instrumentational OP Amps applications.
- Video data acquisition
- Home audio systems
- Subtraction operation circuits
- ECG equipment
- Fission chambers
- Automation control systems
- Video computer boards
- Polarized electrodes
- Professional videography
- pH (acidity)
