LP8340CLDX-ADJ/NOPB Overview

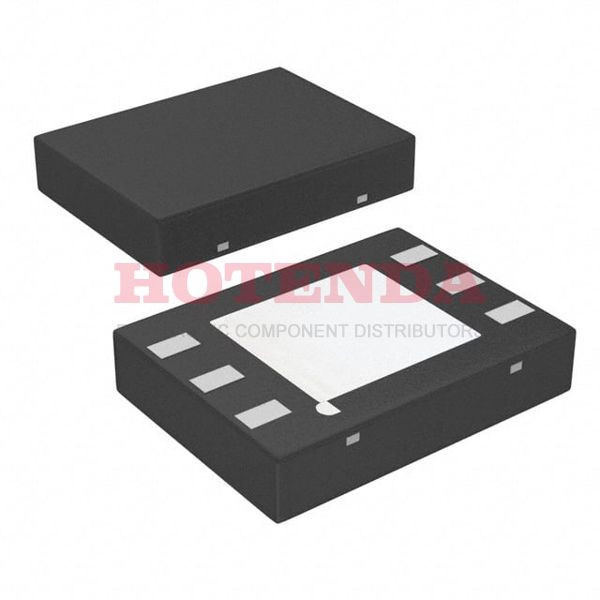

A Tape & Reel (TR) case is used to deliver this IC regulator. This voltage regulator IC comes in a 6-WDFN Exposed Pad case. On the regulater IC chip, there are a total of 6 terminations. Output type Adjustable. This component features 1 Voltage regulators. As a result of the Linear Voltage Regulator's design, the operating temperature of Surface Mount can be adjusted within a specified range. There is a temperature range of 0°C~125°C degrees during operation of the IC regulator. There is a configuration in this voltage regulator IC that specifies that its output function is Positive. In terms of its current output, it is able to supply 1A. In total, this chip consists of 6 pins and is divided into two groups. In order to deliver prompt, sufficient and reliable performance, this regulator IC has 1 outputs in total. A dropout voltage of 10 volts can be obtained from this voltage regulator IC. There are 6 pins on the chip. As an FYI, this IC voltage regulator has the basic part number LP8340. As you can see from the picture, the regulator IC is packed in a certain way. It operates in the 50μA Quiescent Current state.
LP8340CLDX-ADJ/NOPB Features
540mV dropout voltage
TAPE AND REEL method of packing
LP8340CLDX-ADJ/NOPB Applications
There are a lot of Texas Instruments
LP8340CLDX-ADJ/NOPB Linear Voltage Regulators applications.
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
- DVD and CD-ROM drive
- Quick charge protocols
